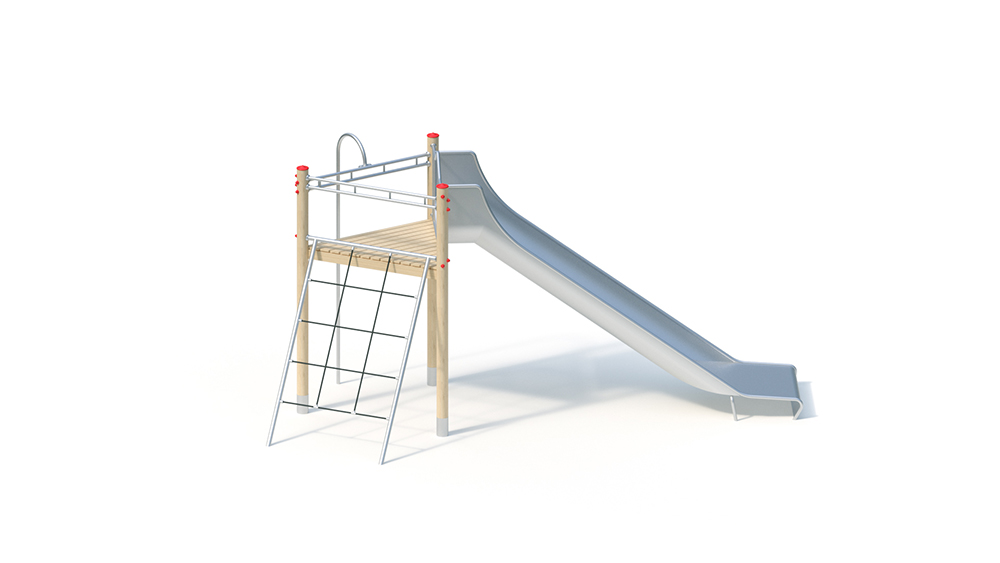

Climbing combination

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

-

Total Length

5.55 m

Total Width

2.60 m

Total Height

2.80 m

Minimum Space Length

9.05 m

Minimum Space Width

5.80 m

Minimum Space Height

3.40 m

Heaviest Single Piece

155.00 kg

(Total) Weight

330.00 kg

Free Height of Fall

1.90 m

Platform Heights

1.80 m

Foundations

Foundation 1

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

3 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical Data

Technical data
Floor area: 2.60 x 5.55 m
Minimum space: 5.80 x 9.05 m (41 m²)
Total height: 2.80 m
Platform height: 1.80 m
Sitting height: 1.90 m
Weight: 155 kg Heaviest individual part
330 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Climbing pole made of
stainless steel
tube, Ø 38 mm – Enternnet made of Herkules rope on stainless steel traverse – Add-on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 0.43 m³

Free fall height
1.90 m
