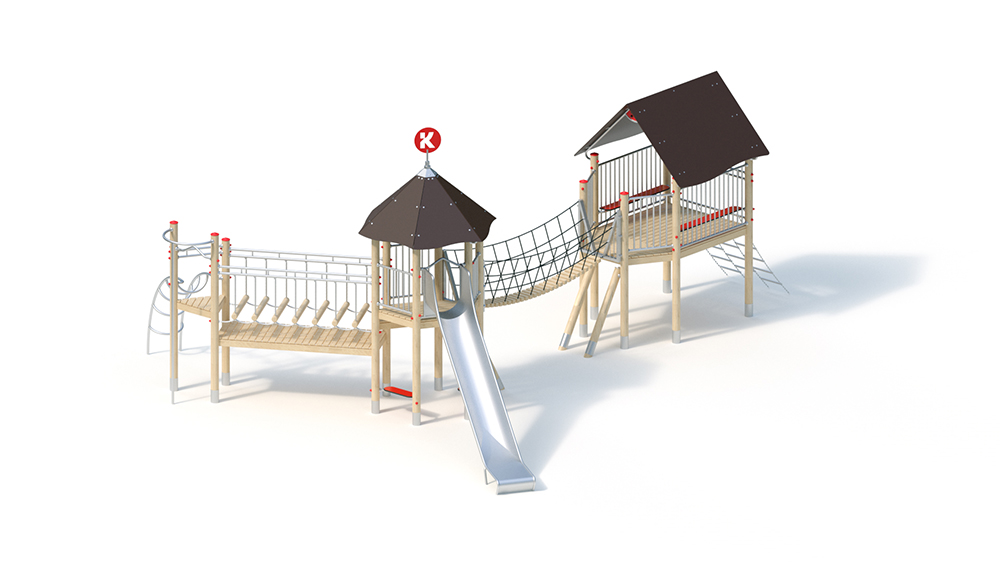

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Y

10.20 m

8.30 m

4.35 m

13.20 m

11.80 m

4.35 m

105.00 kg

1525.00 kg

1.70 m

1.00 m, 1.40 m, 1.60 m

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

15 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

2 pieces - 1.00 x 0.60 x 0.50 m volume: 0.24 m3

-

-

2 pers.

14 h

Assembly time 2 fitters 14 hours each + hoist (without foundation creation)

Technical data
Equipment room: 8.30 x 10.20 x 4.35 m
Minimum room: 11.80 x 13.20 mx 4.35 m
Impact area: 90 m²
Total height: 4.35 m
Free fall height: 1.70 m
Platform heights: 1
.00 / 1.40 / 1.60 m seat height: 1.70 m
weight: 105 kg heaviest single part
1525 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform floors Platform floors
made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– lattice balustrade stainless steel pipe, Ø 33.7 x 2/25 x 2 mm, one-piece welded construction
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– footbridge: V-shaped net construction made of Forta Hercules rope, catwalk made of wooden rungs with approx. 40 mm clear rung spacing, attachment to steel frame construction, parapet height approx. 0.75 m
– support posts made of Robini plywood Ø 120 mm with tubular stand made of stainless steel
– wobbly bridge on tandem cross-beam, Robinia running timbers Ø 10 cm. Fine-linked handrail chains made of stainless steel. Penetration protection made of robinia wood.
– Gable roof, inclination 45 °, made of brown, highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm, with wind chime , Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– seat: made of colored, highly weather-resistant HPL laminate board , 20 mm
– climbing
pole made of stainless steel tube , Ø 38 mm – arch ladder made of stainless steel tube
– chain ladder with stainless steel rungs – add
-on trough slide, 0, 60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the single-seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
15 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
2 pcs. 0.60 x 1.00 x 0.50 m
amount of concrete: 1.77 m³

Free fall height
1.70 m
