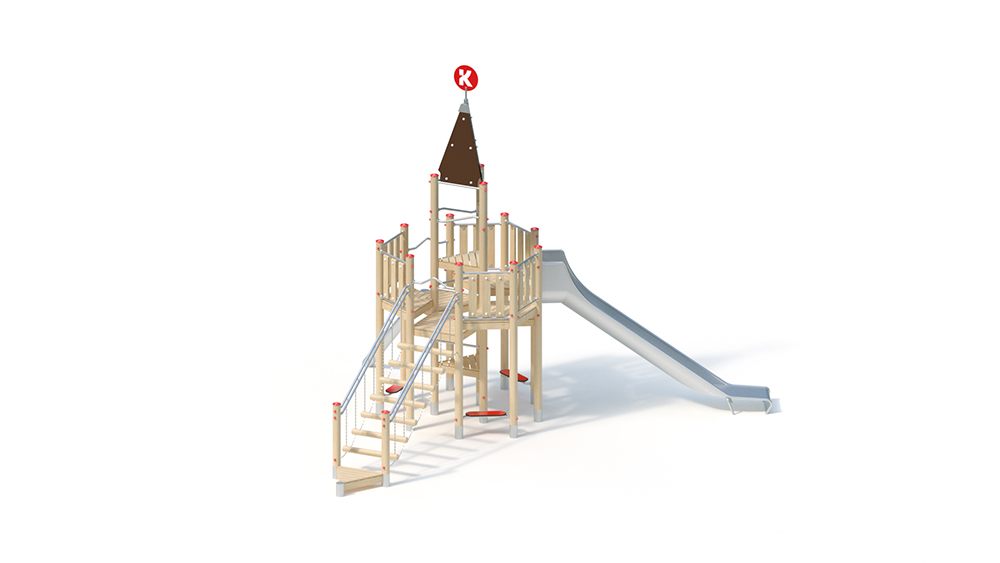

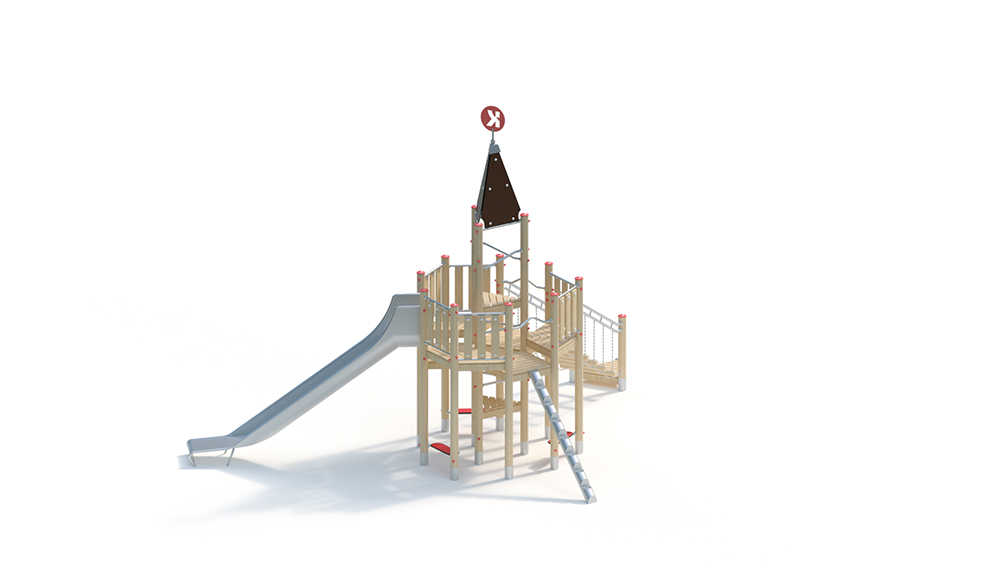

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

-

6.65 m

5.95 m

5.40 m

10.15 m

8.95 m

5.40 m

100.00 kg

955.00 kg

1.80 m

0.20 m, 0.80 m, 1.60 m, 2.40 m

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

15 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

8 h

Assembly time 2 fitters 8 hours each (without foundation creation)

Technical data
Floor area: 5.95 x 6.65 m
Minimum space: 8.95 x 10.15 m (55 m²)
Total height: 5.40 m
Platform height: 0.20 to 2.40 m
Sitting height: 1.70 m
Weight: 100 kg heaviest single part
955 kg in total

Support
posts Support posts made of robinia plywood, milled cylindrically, Ø 120 m. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– wooden parapet made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– step
railing made of stainless steel tube , Ø 33.7 x 2 mm – bow railing made of stainless steel tube, Ø 33.7 x 2 mm, twist-proof
– wobbly steps on Tandem traverse, running timbers made of robinia Ø 100 mm, delicate handrail
chains made of stainless steel – climbing posts made of stainless steel tube Ø 159 x 3 mm, step surface made of profiled stainless steel
sheet – bench 0.80 m made of colored, highly weather-resistant HPL laminate board (red), 20 mm
– climbing rungs made of stainless steel tube, Ø 38 mm, twist-proof
– tower roof, inclination 75 °, made of brown, highly weather-resistant HPL laminate board, 13 mm, with wind chime
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
15 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 1.12 m³

Free fall height
1.80 m
