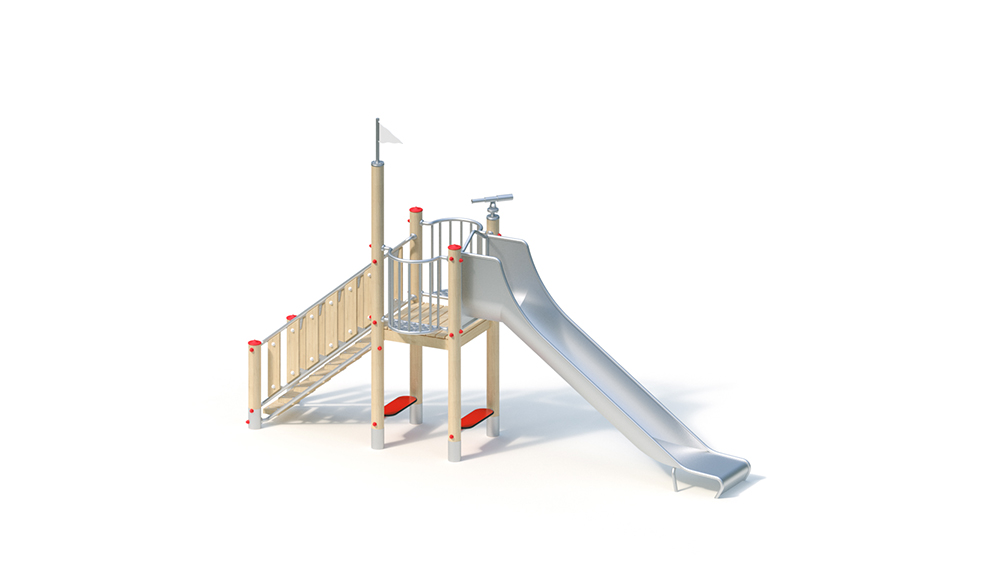

Climbing combination

3+

Public Playgrounds

Slide

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

-

4.90 m

1.35 m

3.25 m

8.40 m

4.35 m

3.25 m

85.00 kg

425.00 kg

1.30 m

1.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

-

2 pers.

2 h

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical data
Total height: 3.25 m
Base area: 1.35 x 4.90 m
Minimum space: 4.35 x 8.40 m (29 m²)
Platform height
: 1.20 m
Slide extension height: 1.20 m Sitting height: 1.30 m

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– balcony balustrade made of stainless steel tubing
– extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, height of the steps 133 mm
– stair balustrade made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
– Telescope horizontally rotatable 360 ​​°, vertically adjustable
– Flag made of rubber with fabric insert for attachment to the support post
– Seat made of highly weather-resistant HPL laminate board (red), 20 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.50 m³

Free fall height
1.30 m
