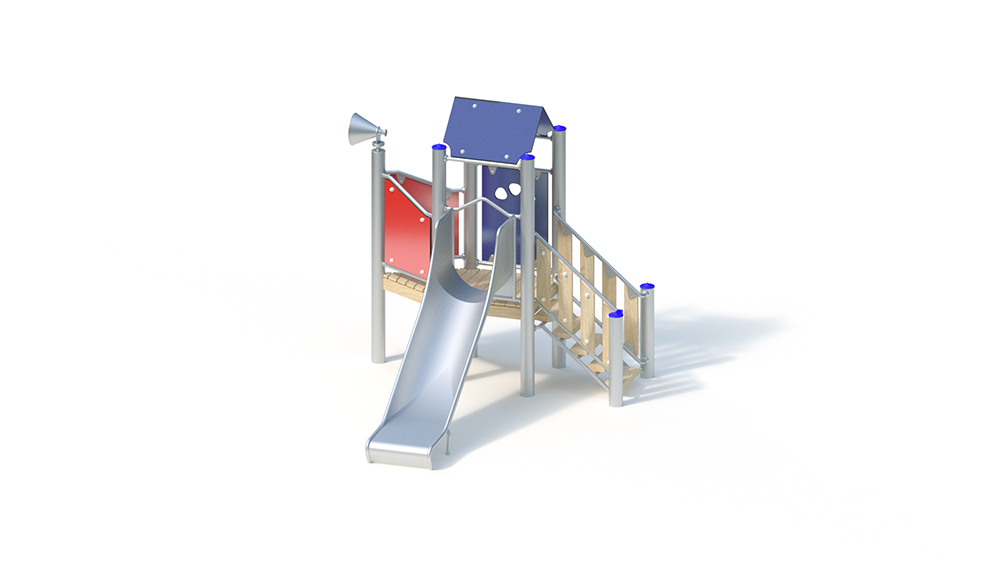

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

3.05 m

Total Width

2.60 m

Total Height

2.50 m

Minimum Space Length

6.55 m

Minimum Space Width

5.60 m

Minimum Space Height

2.50 m

Heaviest Single Piece

75.00 kg

(Total) Weight

400.00 kg

Free Height of Fall

0.90 m

Platform Heights

0.80 m


Foundation 1

7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Total height: 2.45 m
Base area: 2.60 x 3.05 m
Minimum space: 5.60 x 6.55 m (26 m²)
Platform height
: 0.80 m
Slide installation height: 0.80 m Sitting height: 0.90 m
Weight: 70 kg heaviest single part
400 kg in total

posts Support posts made of stainless steel Ø 120 mm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Parapet made of highly weather-resistant HPL laminate board (blue / red), fastening between stainless steel tubes Ø 33.7 x 2 mm
– Extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, gradient height of steps 133 mm
– stair balustrade made of robinia wood, fastened between stainless steel tubes Ø 33.7 x 2 mm
– megaphone horizontally rotatable 360 ​​°
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
– add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
7 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.57 m³

Free fall height
0.90 m
