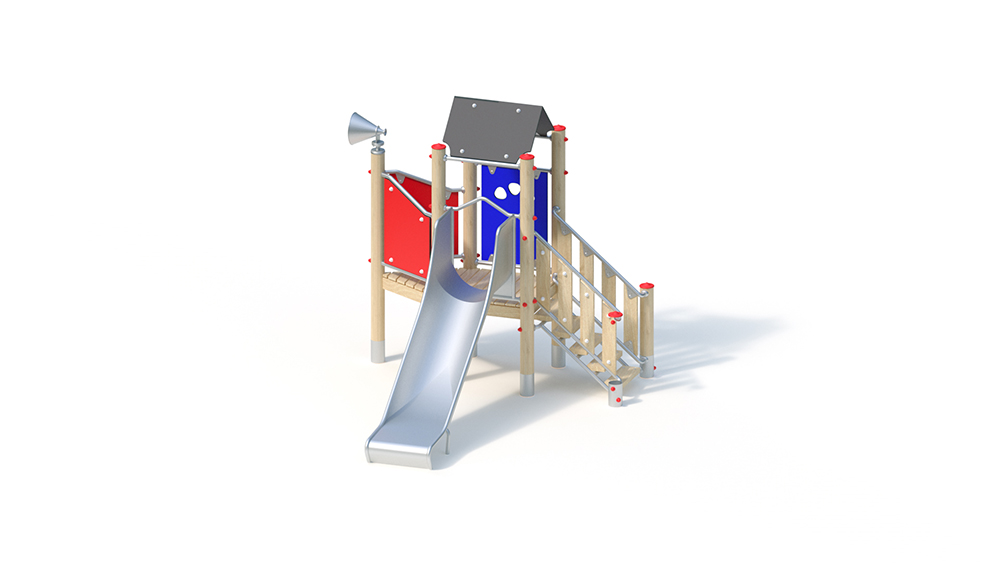

Climbing combination

3+

Public Playgrounds

Slide

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

-

3.05 m

2.60 m

2.50 m

6.55 m

5.60 m

2.50 m

75.00 kg

400.00 kg

0.90 m

0.80 m

7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Total height: 2.50 m
Base area: 2.60 x 3.05 m
Minimum space: 5.60 x 6.55 m (26 m²)
Platform height
: 0.80 m
Slide extension height: 0.80 m Sitting height: 0.90 m
Weight: 70 kg heaviest single part
400 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Parapet made of highly weather-resistant HPL laminate board (blue / red), fastening between stainless steel tubes Ø 33.7 x 2 mm
– Extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, gradient height of steps 133 mm
– stair parapet made of robinia wood, fastened between stainless steel tubes Ø 33.7 x 2 mm
– megaphone horizontally rotatable 360 ​​°
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (brown), 13 mm, fastening to roof frame made of stainless steel tube Ø 33.7 x 2 mm
– add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
7 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.57 m³

Free fall height
0.90 m
