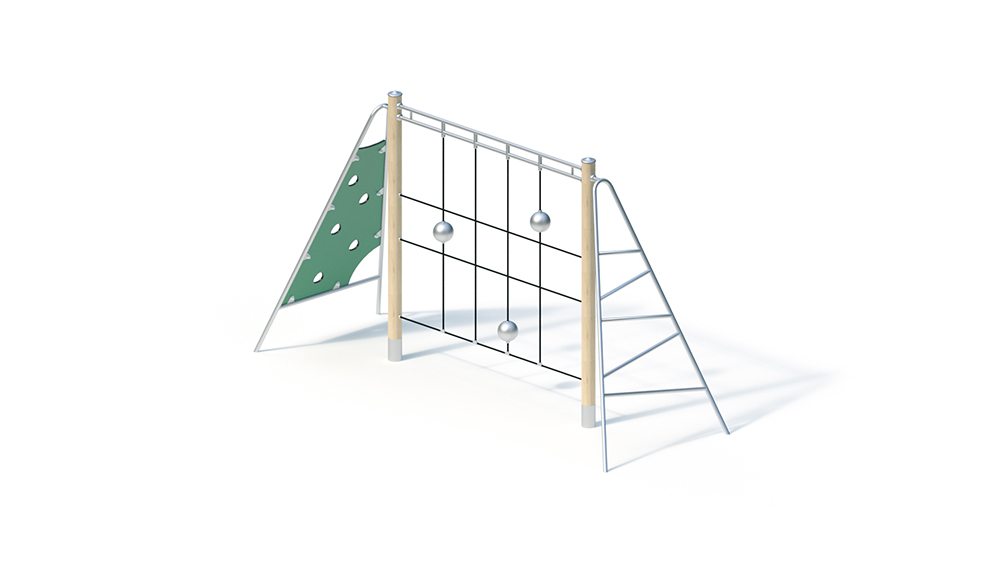

Climbing combination

5+

Public Playgrounds

Climb

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

-

4.40 m

1.50 m

2.45 m

7.40 m

4.50 m

2.45 m

55.00 kg

150.00 kg

2.35 m

-

2 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

4 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

-

-

-

-

2 pers.

2 h

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical data
Floor area: 1.50 x 4.40 m
Minimum space: 4.50 x 7.40 m (31 m²)
Total height: 2.45 m
Weight: 55 kg Heaviest individual part
150 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachments
– Climbing net made of Hercules rope with stainless steel balls Ø 15 cm on stainless steel traverse
– Triangular wall bars made of stainless steel pipe, Ø 38 mm
– Triangular climbing wall made of highly weather-resistant HPL laminate board, 20 mm. Frame made of stainless steel tubing, climbing openings.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.60 m
4 pcs. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.34 m³

Free fall height
2.35 m
