0-22644-501

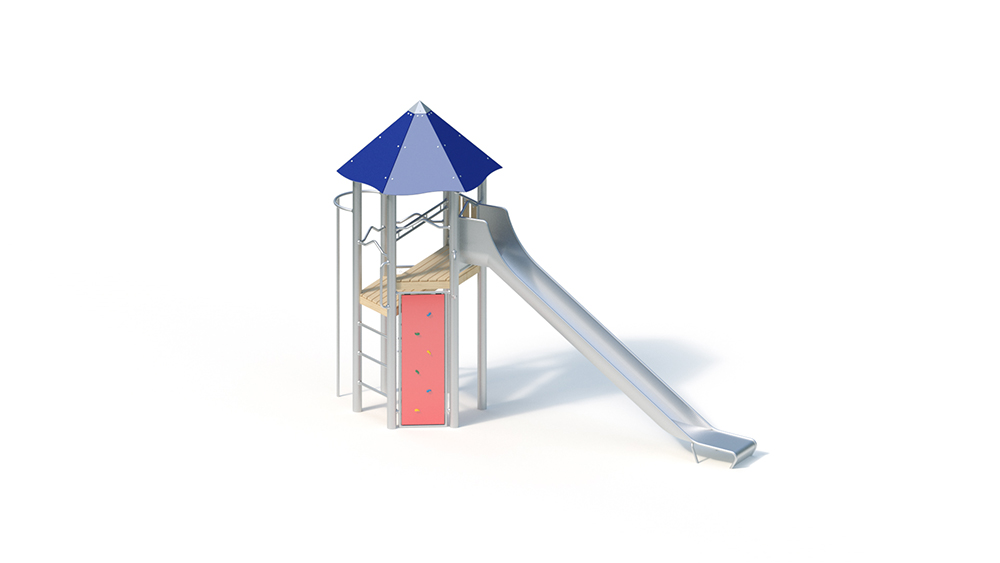

Climbing combination

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

Y

Total Length

5.90 m

Total Width

2.65 m

Total Height

4.20 m

Minimum Space Length

9.50 m

Minimum Space Width

5.80 m

Minimum Space Height

4.20 m

Heaviest Single Piece

125.00 kg

(Total) Weight

625.00 kg

Free Height of Fall

2.10 m

Platform Heights

1.60 m, 2.00 m

Foundations

Foundation 1

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours, plus lifting gear (without foundation creation)

Technical Data

Technical data
Total height: approx. 4.20 m
Base area: approx. 2.65 x 5.90 m
Minimum space: approx . 5.80 x 9.50 m (36 m²)
Platform height: 1.60 / 2.00 m Slide installation height
: 2.00 m
seat height: 2.10 m Slide inclination:
36 ° Slide width:
0.60 m
Slide plate thickness: 2.5 mm
Weight: 125 kg heaviest individual part
625 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.

Attaching parts
– timber balustrade locust, 125 x 30 mm, fixing between the stainless steel tubes Ø 33,7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– climbing rungs made of stainless steel tube, Ø 38 mm, twist-proof
– chain ladder with stainless steel rungs
– vertical handle as a climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
– vertical climbing pole made of stainless steel tube, Ø 38 mm
– climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm , Frame made of stainless steel tubing, with free climbing elements attached on one side
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (blue), 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2, 5 mm, with anti-roll fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
1 pc. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.50 m³

Free fall height
2.10 m
