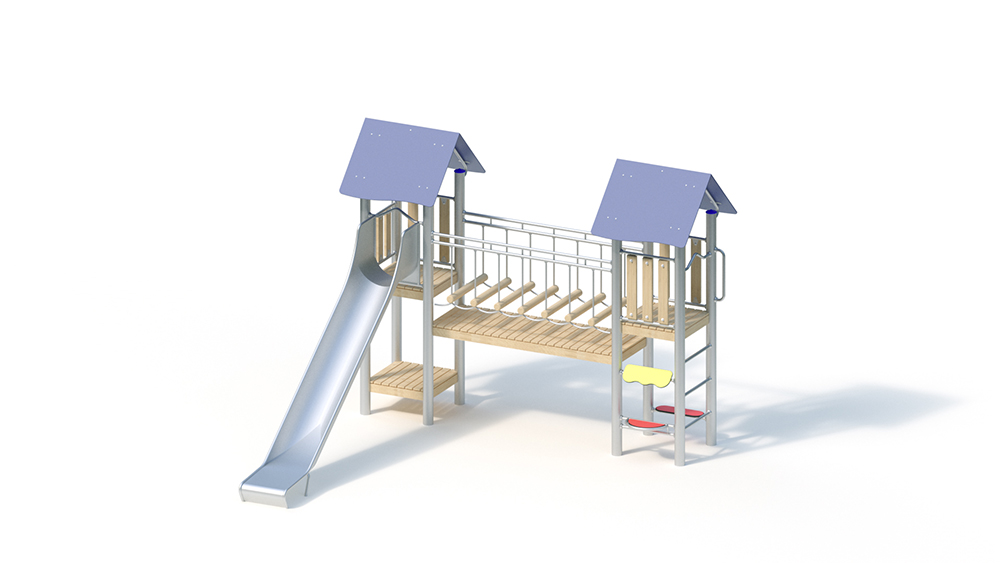

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

4.55 m

Total Width

4.40 m

Total Height

3.45 m

Minimum Space Length

7.97 m

Minimum Space Width

7.30 m

Minimum Space Height

3.45 m

Heaviest Single Piece

100.00 kg

(Total) Weight

730.00 kg

Free Height of Fall

1.70 m

Platform Heights

0.40 m, 1.20 m, 1.60 m


Foundation 1

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

8 h

Assembly Details

Assembly time 2 fitters 8 hours each (without foundation creation)

Technical Data

Technical data
Equipment room: 4.40 x 4.55 x 3.41 m
Minimum room: 7.30 x 7.97 x 3.41 m
Impact area: 44 m²
Total height: 3.41 m
Free fall height: 1.70 m
Platform heights: 0 , 40 / 1.20 / 1.60 m
seat height: 1.70 m Weight: 100 kg heaviest single part 730 kg in total

posts Support posts made of stainless steel, Ø 120 mm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with claw-shaped tips and a continuous bolt connection.

Attachment parts – iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– wooden parapet made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– climbing rungs made of stainless steel tube, Ø 38 mm, twist-proof
– vertical handle as Climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
– seat made of highly weather-resistant HPL laminate board (red), 20 mm
– table / awning made of highly weather-resistant HPL laminate board (red / yellow), 20/15 mm
– wobbly bridge on tandem traverse , Robinia running timbers Ø 10 cm, penetration protection made of robinia wood
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.63 m³
