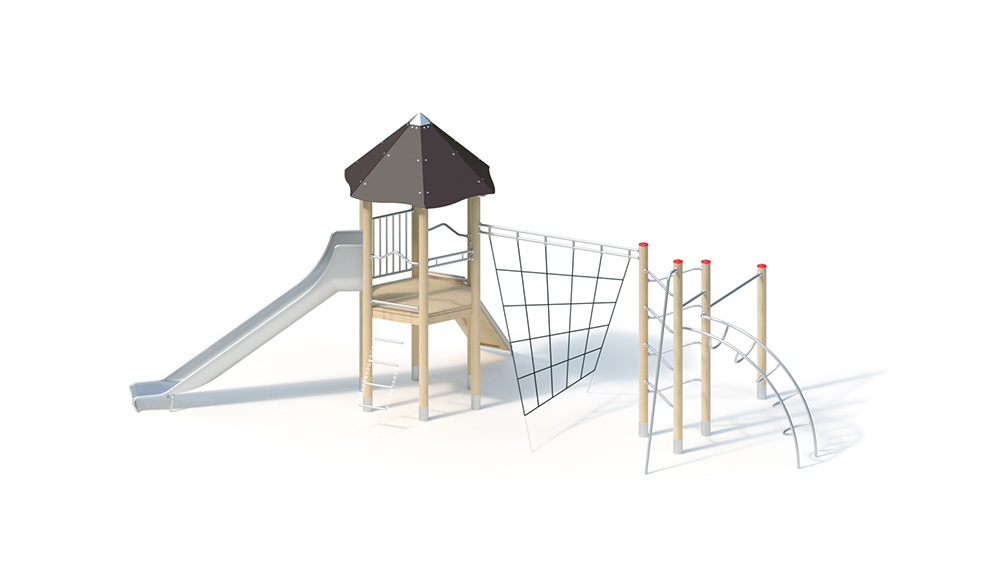

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

8.92 m

Total Width

4.22 m

Total Height

3.89 m

Minimum Space Length

12.29 m

Minimum Space Width

7.23 m

Minimum Space Height

3.89 m

Heaviest Single Piece

95.00 kg

(Total) Weight

905.00 kg

Free Height of Fall

2.52 m

Platform Heights

1.40 m


Foundation 1

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

5 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

6 h

Assembly Details

Installation time 2 fitters 6 hours each (without foundation creation)

Technical Data

Technical data
Total height: 3.90 m
Base area: 4.25 x 8.95 m
Minimum space: 7.35 x 12.30 m (65 m²) Bar height:
1.70 m
Platform height: 1.40 m
Sitting height: 1.50 m
Weight: 95 kg heaviest single part
905 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board – Horizontal
bar made of stainless steel tube , Ø 33.7 x 2.9 mm, twist- proof – Climbing bar made of stainless steel tube
, Ø 38 mm
– Arched ladder made of stainless steel tube
– Climbing net made of Hercules rope on stainless steel traverse , in rotated by 90 °
– rungs made of stainless steel
tube , Ø 33.7 mm – bail rail, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– tandem railing made of stainless steel tube , Ø 33.7 x 2 mm
– tent roof, inclination 45 °, from highly weather-resistant HPL laminate board, 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm.
– Chain ladder with stainless steel rungs

Mesh balustrade made of stainless steel tube , Ø 33.7 x 2/25 x 2 mm, one-piece welded construction – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
5 pcs. 0.30 x 0.30 x 0.40 m
10 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.94 m³

Free fall height
2.55 m
