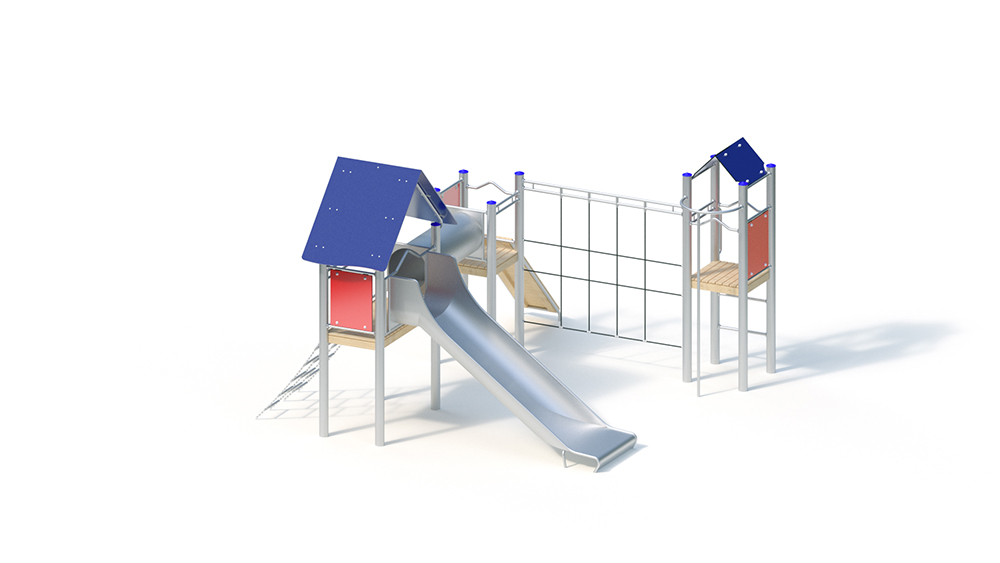

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

-

5.15 m

5.70 m

3.51 m

8.39 m

8.48 m

3.51 m

135.00 kg

980.00 kg

2.37 m

1.40 m

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

12 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Floor area: 5.15 x 5.70 m
Minimum space: 8.39 x 8.48 m (58 m²)
Total height: 3.51 m
Platform height: 1.40 m
Seat height: 1.50 m
Weight: 135 kg heaviest individual part
980 kg in total

Support
posts Support posts made of stainless steel, Ø 120 mm covered with non-detachable post caps made of stainless steel

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm – Panel parapet
made of highly weather-resistant HPL laminate board (red), fastening between stainless steel tubes Ø 33.7 x 2 mm
– Climbing
rungs made of stainless steel tube , Ø 38 mm, twist -proof – Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– Vertical climbing pole made of stainless steel tube , Ø 38 mm
– Climbing
net made of Hercules rope on a stainless steel traverse – Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
– Chain ladder with stainless steel rungs
– Gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel
tube Ø 33.7 x 2 mm – add-on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
12 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 1.08 m³

Free fall height
2.37 m
