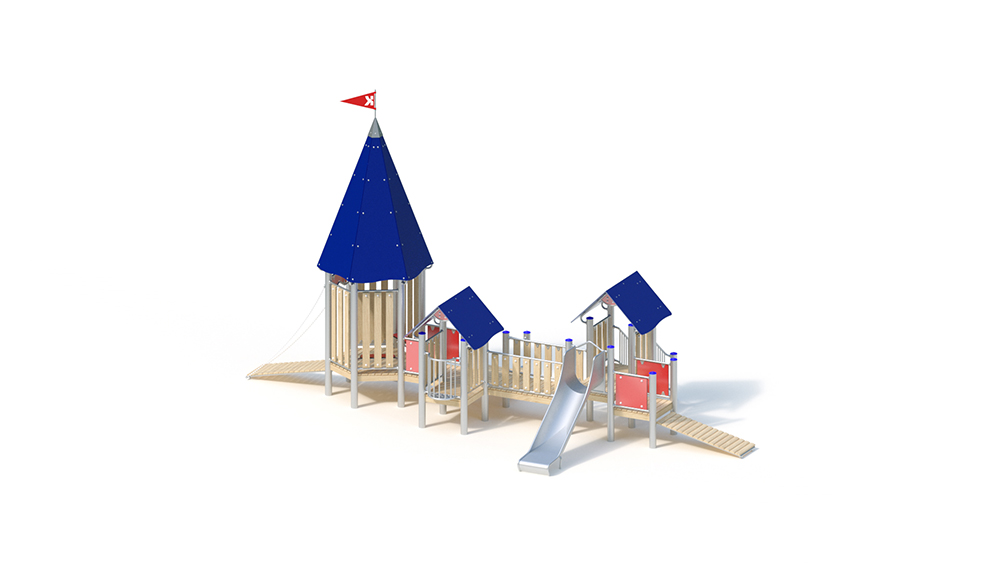

Climbing combination

3+

Public Playgrounds

Slide

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities.

Y

9.45 m

4.65 m

5.40 m

12.45 m

8.15 m

5.40 m

75.00 kg

1315.00 kg

0.90 m

0.40 m, 0.20 m, 0.60 m, 0.80 m

25 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

2 pieces - 0.70 x 0.30 x 0.40 m volume: 0.09 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

15 h

Installation time 2 fitters 15 hours each (without foundation preparation), plus lifting gear

Technical data
Floor area: 4.65 x 9.45 m
Minimum space: 8.16 x 12.42 m (68 m²)
Total height: 5.49 m
Platform heights: 0.20 / 0.40 / 0.60 / 0.80 m Slide installation height:
0.80 m
Single seat height: 0.90 m

Stand
posts Stand posts made of stainless steel Ø 12 cm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– ramp made of profile boards, 95 x 30 mm
– extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Rise height of the steps 133 mm.
– Stair parapet made of stainless steel tube, Ø 33.7 x 2/20 x 2 mm, one-piece welded construction
– Panel
parapet made of highly weather-resistant HPL laminate board (red) – Wooden parapet made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm. Attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm.
– Tower roof, inclination 75 °, made of colored, highly weather-resistant HPL laminate board (royal blue), 13 mm
– Tower flag, rotatable
– Seat: made of highly weather-resistant HPL laminate board (red), 20 mm
–
Balcony balustrade made of stainless steel pipe – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the single seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
2 pcs. 0.30 x 0.70 x 0.40 m
25 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 1.89 m³

Free fall height
0.90 m
