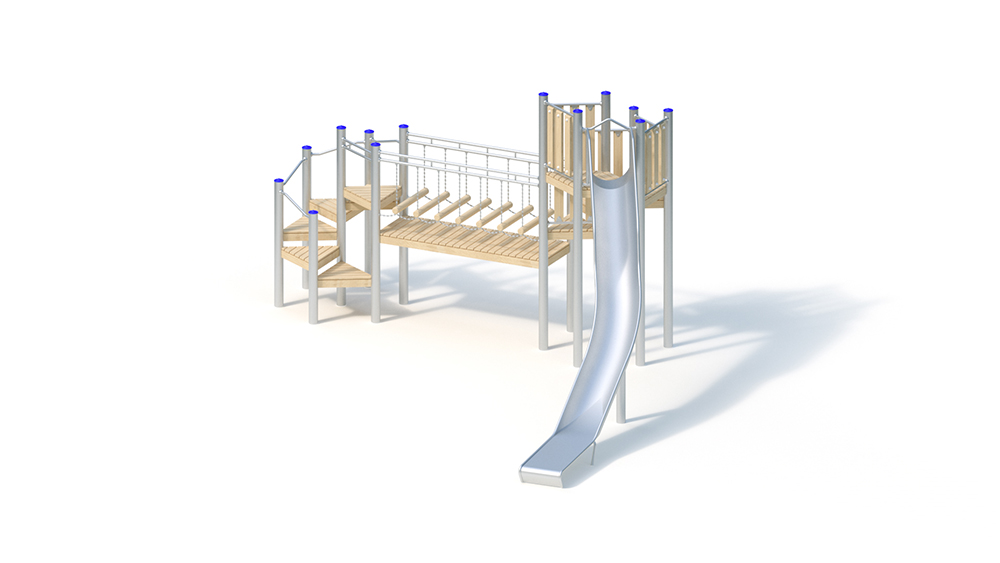

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

Y

6.50 m

6.15 m

3.50 m

10.05 m

9.45 m

4.00 m

150.00 kg

985.00 kg

2.50 m

0.60 m, 0.80 m, 1.00 m, 1.20 m, 1.40 m, 1.60 m, 1.80 m, 2.00 m, 2.20 m, 2.40 m

14 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.40 x 0.40 x 0.60 m volume: 0.10 m3

1 piece - 0.90 x 0.75 x 0.40 m volume: 0.27 m3

-

-

-

2 pers.

14 h

Assembly time 2 fitters 14 hours each, plus lifting gear (without foundation creation)

Technical data
Floor area: 6.15 x 6.50 m
Minimum space: 9.45 x 10.05 m (67 m²)
Total height: 3.50 m
Platform height: 0.60 to 2.40 m
Sitting height: 2.50 m
Weight: 150 kg heaviest single part
985 kg in total

Standpfosten
Standpfosten aus Edelstahlrohr Ø 120 mm, mit nicht lösbaren Pfostenkappen aus Edelstahl abgedeckt.

Podestboden
Podestboden aus Brettern, 30 mm dick und umlaufenden Kantholzunterzügen 45 x 100 mm. Die getrockneten Schnitthölzer aus Robinie sind gehobelt, gefast und frei von Faulästen. Kraftschlüssige Bodenbefestigung durch spezielle Edelstahlwinkel mit einer durchgehenden Bolzenverschraubung.

Attachment parts
– Robinia wood balustrade, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Step railing made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Wobble bridge on tandem traverse, Robinia running timbers Ø 100 mm, penetration protection made of robinia wood
– add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (provided by customer)
14 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 0.75 x 0.40 m
amount of concrete: 1.26 m³

Free fall height
2.50 m
