0-22208-501

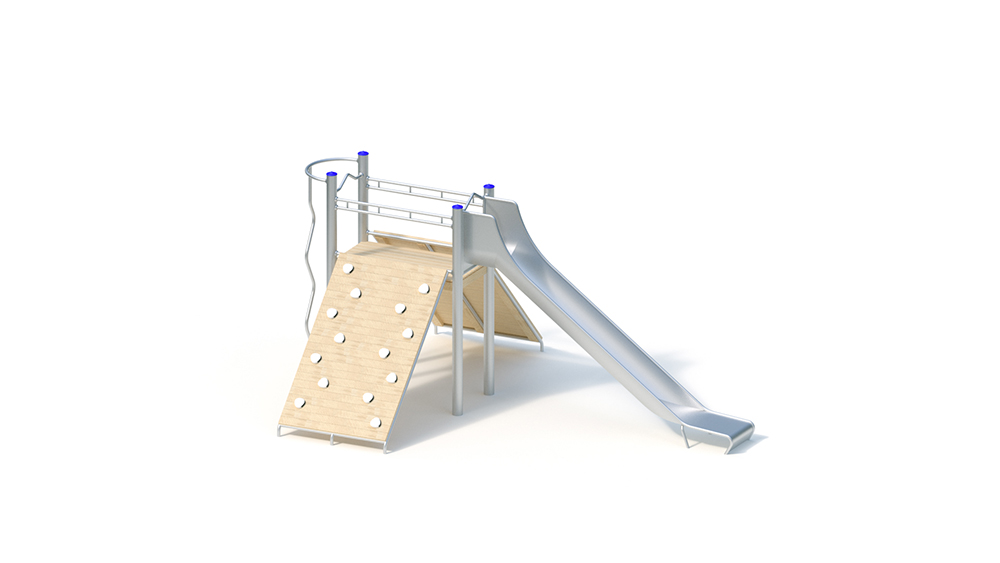

Climbing combination

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Slide

Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

-

Total Length

5.55 m

Total Width

4.05 m

Total Height

2.70 m

Minimum Space Length

9.15 m

Minimum Space Width

7.05 m

Minimum Space Height

3.20 m

Heaviest Single Piece

160.00 kg

(Total) Weight

615.00 kg

Free Height of Fall

1.70 m

Platform Heights

1.60 m

Foundations

Foundation 1

7 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Floor area: 4.05 x 5.55 m
Minimum space: 7.05 x 9.15 m (52 ​​m²)
Total height: 2.70 m
Platform height: 1.60 m
Seat height: 1.70 m
Weight: 160 kg heaviest individual part
615 kg in total

Support
posts Support posts made of stainless steel tube, Ø 120 mm, covered with non-detachable post caps made of stainless steel

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– curved climbing
pole on the semicircular tube – climbing wall made of robinia wood with attached climbing elements made of HPL laminate
board – add-on trough slide, 0 , 60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the single-seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
7 pcs. 0.30 x 0.30 x 0.40 m
4 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.63 m³

Free fall height
1.70 m
