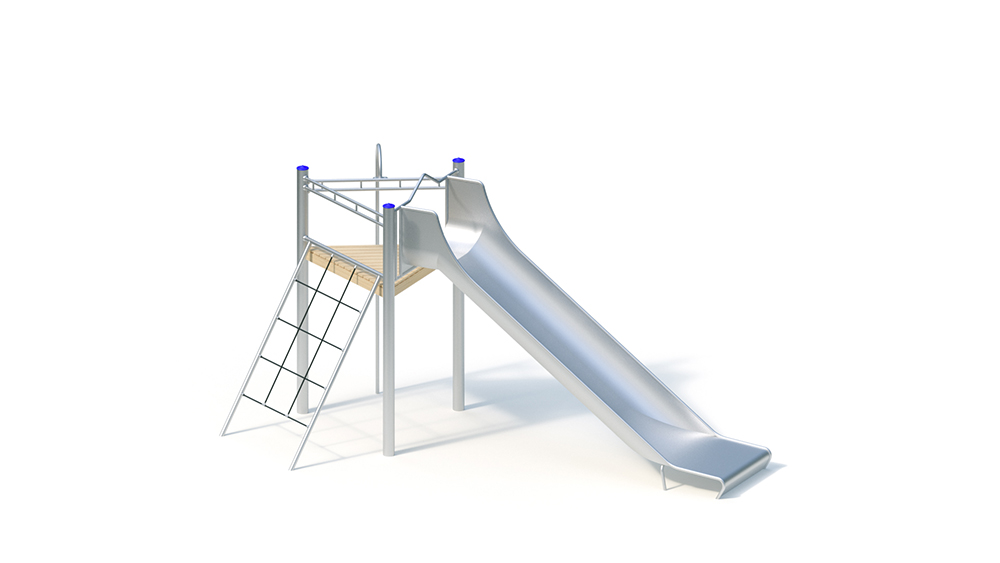

Climbing combination
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities
Techincal Specifications
Lifting Device
-
Total Length
5.55 m
Total Width
2.60 m
Total Height
2.80 m
Minimum Space Length
9.05 m
Minimum Space Width
5.80 m
Minimum Space Height
3.40 m
Heaviest Single Piece
155.00 kg
(Total) Weight
330.00 kg
Free Height of Fall
1.90 m
Platform Heights
1.80 m
Foundations
Foundation 1
1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 2
3 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 2.60 x 5.55 m
Minimum space: 5.80 x 9.05 m (41 m²)
Total height: 2.80 m
Platform height: 1.80 m
Sitting height: 1.90 m
Weight: 155 kg Heaviest individual part
330 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Climbing pole made of
stainless steel
tube, Ø 38 mm – Enternnet made of Herkules rope on stainless steel traverse – Add-on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 0.43 m³
Free fall height
1.90 m
