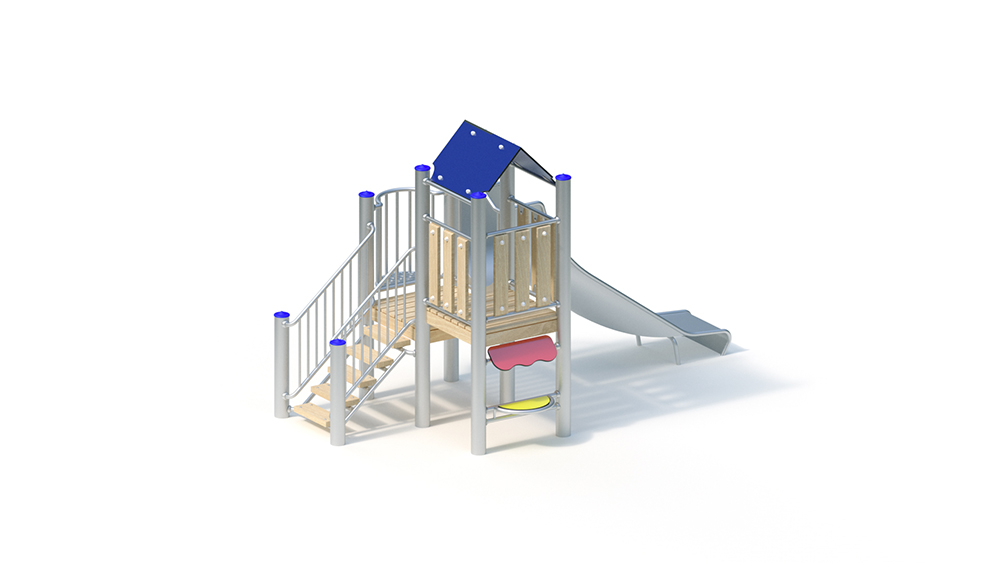

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device


Total Length

3.90 m

Total Width

2.15 m

Total Height

2.50 m

Minimum Space Length

7.40 m

Minimum Space Width

5.15 m

Minimum Space Height

2.50 m

Heaviest Single Piece

75.00 kg

(Total) Weight

410.00 kg

Free Height of Fall

1.00 m

Platform Heights

0.80 m, 1.00 m


Foundation 1

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical Data

Technical data
Total height: 2.50 m
Base area: 2.15 x 3.90 m
Minimum space: 5.15 x 7.40 m (27 m²)
Platform height: 0.80 / 1.00
Slide installation height: 0.80 m Sitting height: 0.90 m
Weight: 75 kg heaviest single part
410 kg in total

posts Support posts made of stainless steel Ø 120 mm, covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Wooden
balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm – Balcony balustrade made of stainless steel tube Ø 33.7 x 2 mm
– Add-on stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33 , 7 x 2 mm, height of the steps 133 mm
– stair parapet made of stainless steel tubing, Ø 33.7 x 2/20 x 2 mm, one-piece welded construction
– awning made of highly weather-resistant HPL laminate board (red), 15 mm
– table made of highly weather-resistant HPL Laminate board (yellow), 15 mm
– pitched roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.63 m³

Free fall height
1.00 m
