Climbing combination

5+

Public Playgrounds

Climb

Suitable for
children from 5 years,
public playgrounds etc.
sports activities.

-

1.90 m

1.50 m

2.80 m

4.90 m

4.50 m

2.80 m

50.00 kg

90.00 kg

2.05 m

-

2 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.60 x 0.40 x 0.40 m volume: 0.10 m3

-

-

-

-

2 pers.

1 h

Assembly time 2 fitters each 0.5 hour (without foundation creation)

Technical data
Floor area: 1.50 x 1.90 m
Minimum space: 4.50 x 4.90 m (19 m²)
Total height: 2.80 m
Weight: 50 kg Heaviest individual part
90 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surface is covered with a non-detachable post cap made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

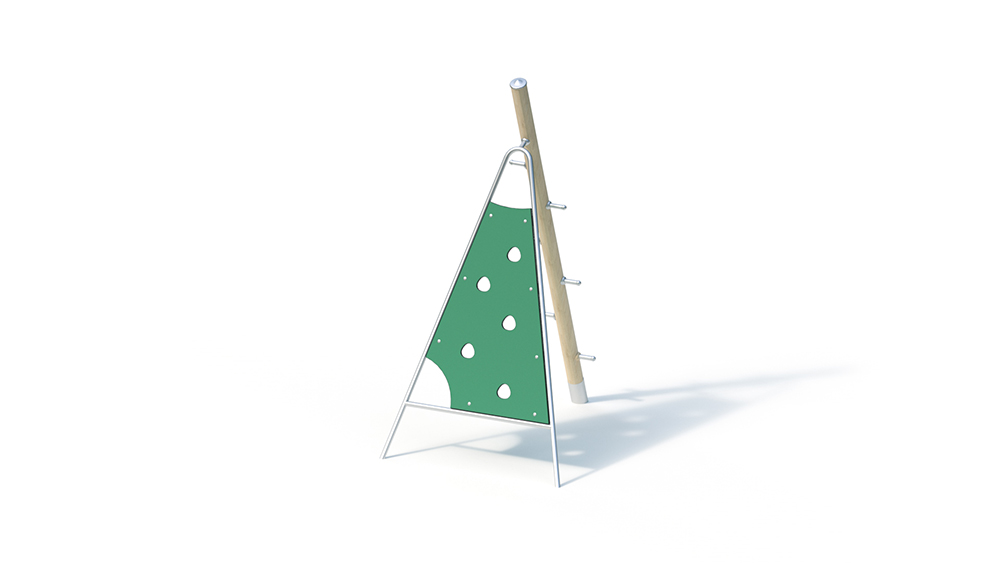

Attachment parts – Climbing aid made of stainless steel tube 30 x 2 mm, glass bead blasted, with spherical end Ø 40 mm
– Triangular climbing wall made of highly weather-resistant HPL laminate board, 20 mm, frame made of stainless steel tube, 5 climbing openings

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.60 x 0.40 x 0.40 m
Amount of concrete: 0.20 m³

Free fall height
2.05 m
