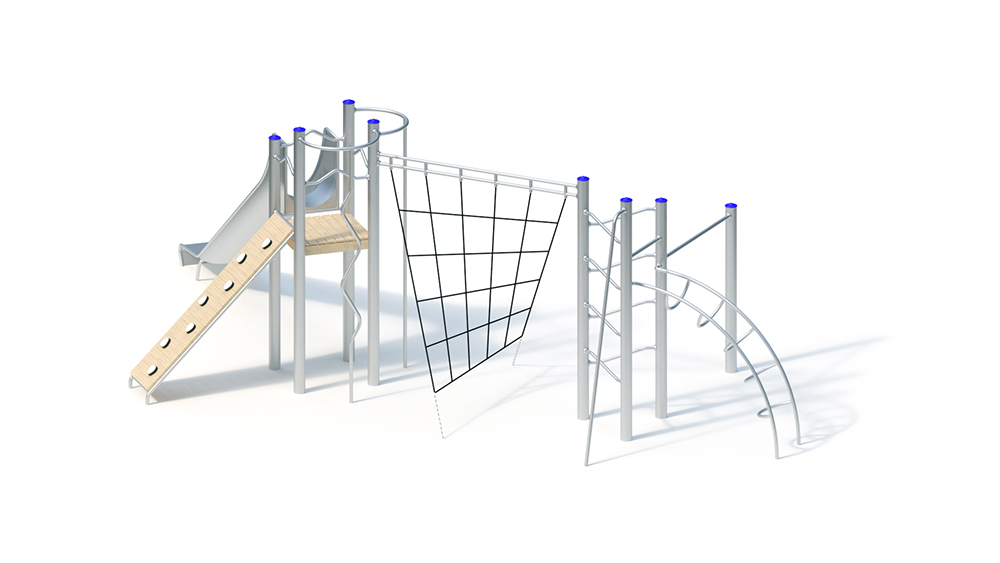

Climbing combination

-+

Public Playgrounds

Climb

Suitable for
children from 5 years,
public playgrounds etc.
sports activities.

Y

8.25 m

4.55 m

2.90 m

11.45 m

7.75 m

2.90 m

105.00 kg

540.00 kg

2.77 m

1.60 m

7 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Total height: 2.88 m
Base area: 4.55 x 8.25 m
Minimum space: 7.76 x 11.46 m (63 m²)
Platform height: 1.60 m
Sitting height: 1.70 m Slide incline
: 36 ° Slide width
: 0.60 m
thickness of slide plate: 2.5 mm,
height of bar: 1.70 m

Support
posts Support posts made of stainless steel Ø 120 mm, covered with non-detachable post caps made of stainless steel (blue / RAL 5015).

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– climbing wall made of robinia wood with attached climbing elements made of HPL laminate board – horizontal
bar made of stainless steel
tube , Ø 38 x 2.5 mm, twist -proof – arched ladder made of stainless steel tube
– climbing pole , climbing snake and Climbing rungs made of stainless steel tube, Ø 38 mm
– Climbing net made of Hercules rope on a stainless steel
traverse, twisted by 90 ° – Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection above the single-seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
7 pcs. 0.30 x 0.30 x 0.40 m
8 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
amount of concrete: 0.88 m³

Free fall height
2.77 m
