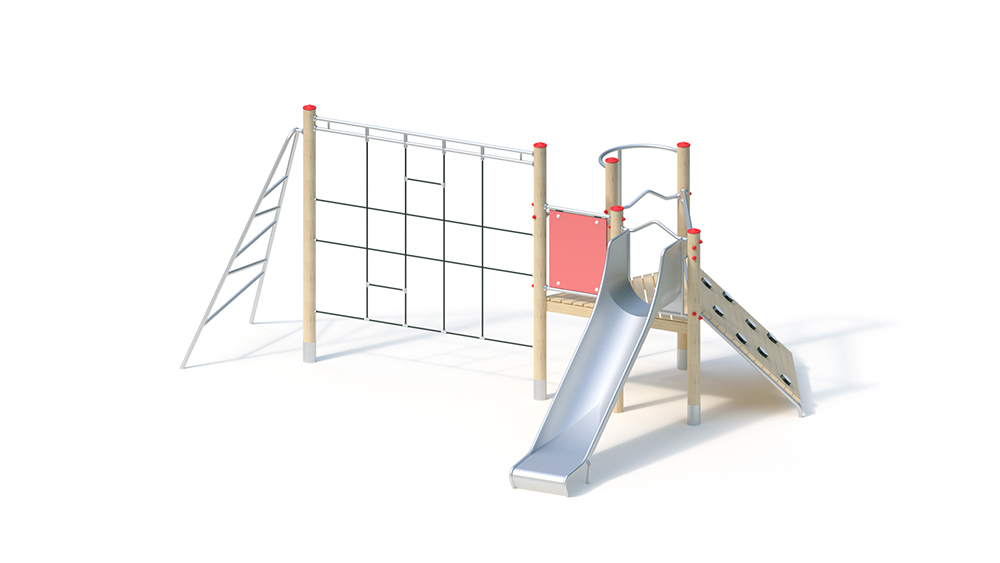

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age on
public playgrounds etc.
Exercise activities

Techincal Specifications

Lifting Device


Total Length

5.85 m

Total Width

4.30 m

Total Height

2.55 m

Minimum Space Length

8.85 m

Minimum Space Width

8.15 m

Minimum Space Height

2.55 m

Heaviest Single Piece

85.00 kg

(Total) Weight

480.00 kg

Free Height of Fall

2.42 m

Platform Heights

1.00 m


Foundation 1

6 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

5 h

Assembly Details

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 4.30 x 5.85 m
Minimum space: 8.15 x 8.85 m (48 m²)
Total height: 2.55 m
Platform height: 1.00 m
Sitting height: 1.10 m

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.

Attachment parts
– Panel parapet made of highly weather-resistant HPL laminate board (red), fastening between stainless steel pipes
Ø 33.7 x 2 mm
– Tandem railing made of stainless steel pipe, Ø 33.7 x 2 mm – Upright railing, anti-roll, made of stainless steel pipe, Ø 33.7 x 2 mm
– vertical climbing pole of stainless steel pipe, Ø 38 mm
– Kraxelwand from robinia with applied climbing elements of HPL plate
– triangular wall bars made of stainless steel tube, Ø 38 mm
– climbing net from Hercules cable of stainless steel traverse
– slide bedway, 0.60 m wide, one-piece stainless steel construction, Sheet thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.72 m³

Free fall height
2.42 m
