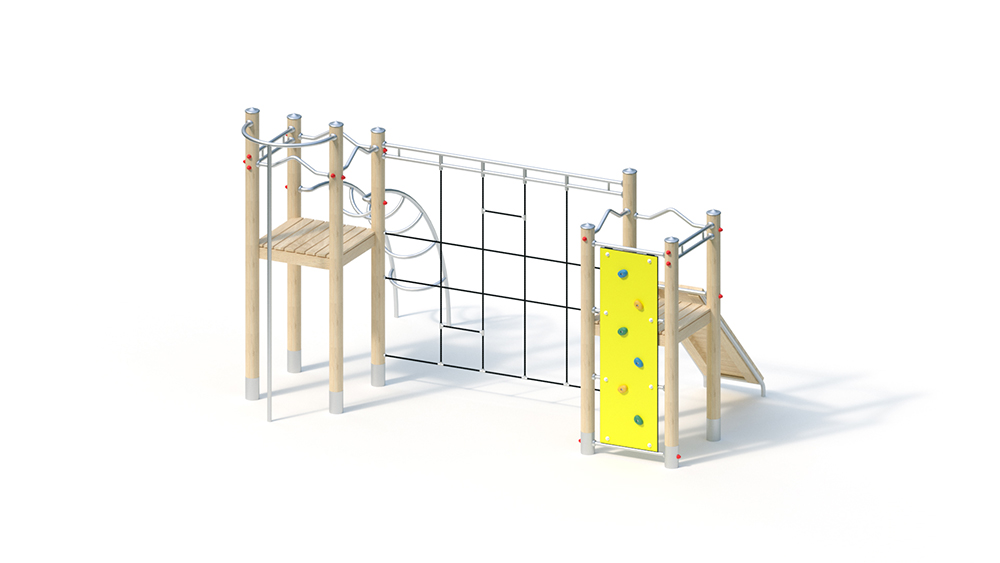

Climbing combination
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
4.15 m
Total Width
3.00 m
Total Height
2.65 m
Minimum Space Length
7.45 m
Minimum Space Width
6.00 m
Minimum Space Height
2.65 m
Heaviest Single Piece
60.00 kg
(Total) Weight
460.00 kg
Free Height of Fall
2.20 m
Platform Heights
1.20 m, 1.40 m
Foundations
Foundation 1
8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
5 pieces -0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
6 h
Assembly Details
Installation time 2 fitters 6 hours each (without foundation creation)
Technical Data
Technical data
Floor area: approx. 3.00 x 4.15 m
Minimum space: approx . 6.00 x 7.45 m (39 m²)
Total height: approx. 2.65 m
Platform heights: 1.20 / 1.40 m
Weight: 60 kg heaviest single part
460 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Podestboden
Podestboden aus Brettern, 30 mm dick und umlaufenden Kantholzunterzügen 45 x 100 mm. Die getrockneten Schnitthölzer aus Robinie sind gehobelt, gefast und frei von Faulästen. Kraftschlüssige Bodenbefestigung durch spezielle Edelstahlwinkel mit einer durchgehenden Bolzenverschraubung.
Attachment parts – Upright railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Vertical climbing
pole made of stainless steel tube , Ø 38 x 2 mm – Arch ladder made of stainless steel tube, Ø 33.7 x 2 mm
– Climbing
net made of Forta Hercules rope on stainless steel traverse
– Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board – Climbing wall made of highly weather-resistant HPL laminate board (yellow), 20 mm, frame made of stainless steel tube, with free climbing elements on one side
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
5 pieces. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.69 m³
Free fall height
2.20 m
