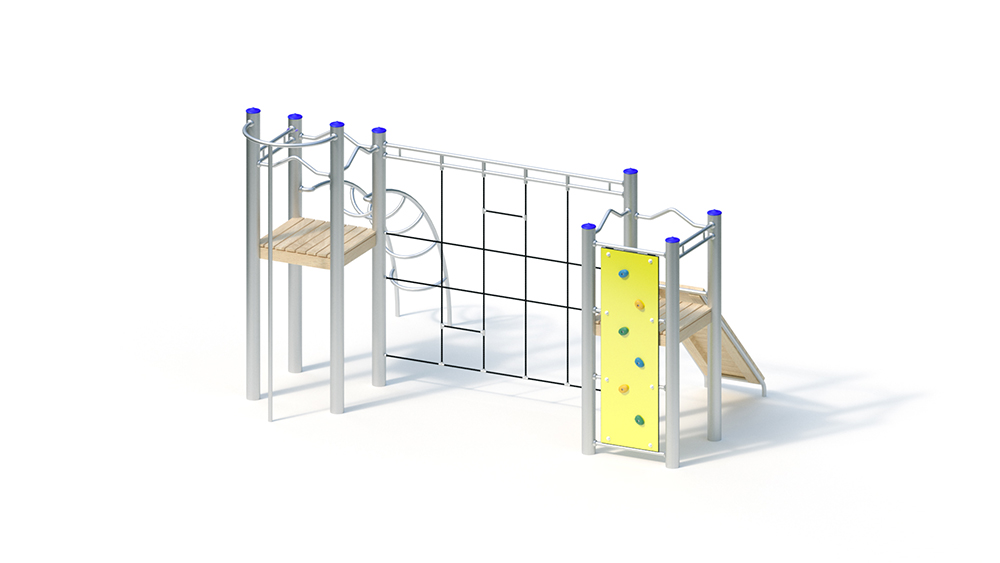

Climbing combination
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
4.15 m
Total Width
3.00 m
Total Height
2.65 m
Minimum Space Length
7.50 m
Minimum Space Width
6.00 m
Minimum Space Height
2.65 m
Heaviest Single Piece
60.00 kg
(Total) Weight
460.00 kg
Free Height of Fall
2.20 m
Platform Heights
1.20 m, 1.40 m
Foundations
Foundation 1
8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
5 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
6 h
Assembly Details
Installation time 2 fitters 6 hours each (without foundation creation)
Technical Data
Technical data
Floor area: approx. 3.00 x 4.15 m
Minimum space: approx . 6.00 x 7.50 m (39 m²)
Total height: approx. 2.65 m
Platform heights: 1.20 / 1.40 m
Weight: 60 kg heaviest single part
460 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Anbauteile
– Bügelgeländer, abrollverhindernd, aus Edelstahlrohr, Ø 33,7 x 2 mm
– Tandemgeländer aus Edelstahlrohr, Ø 33,7 x 2 mm
– senkrechte Kletterstange aus Edelstahlrohr, Ø 38 x 2 mm
– Bogenleiter aus Edelstahlrohr, Ø 33,7 x 2 mm
– Kletternetz aus Forta-Herkules-Seil an Edelstahltraverse
– Kraxelwand aus Robinienholz mit aufgesetzten Kletterelementen aus HPL-Schichtstoffplatte
– Kletterwand aus höchst witterungsbeständiger HPL-Schichtstoffplatte (gelb), 20 mm, Rahmen aus Edelstahlrohr, mit einseitig aufgesetzten Freeclimbing-Elementen
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
5 pieces. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.69 m³
Free fall height
2.20 m
