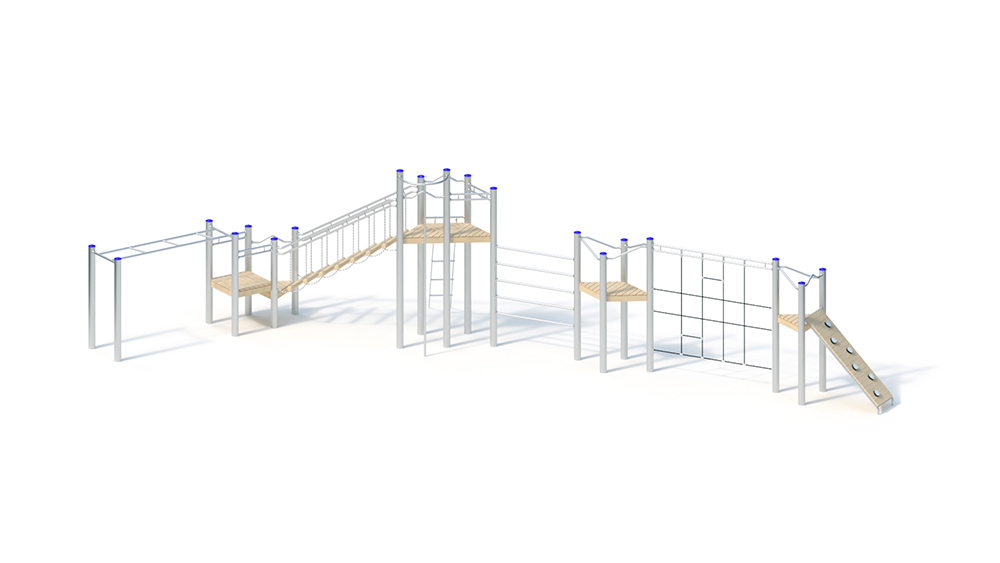

Climbing combination
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.
sports activities.
Techincal Specifications
Lifting Device
-
Total Length
13.65 m
Total Width
5.15 m
Total Height
3.25 m
Minimum Space Length
16.95 m
Minimum Space Width
8.35 m
Minimum Space Height
3.25 m
Heaviest Single Piece
70.00 kg
(Total) Weight
925.00 kg
Free Height of Fall
2.35 m
Platform Heights
0.60 m, 2.00 m, 0.80 m, 1.40 m
Foundations
Foundation 1
3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 2
19 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
8 h
Assembly Details
Assembly time 2 fitters 8 hours each (without foundation creation)
Technical Data
Technical data
Total height: 3.25 m
Base area: 5.15 x 13.65 m
Minimum space: 8.35 x 16.95 m (82 m²)
Platform heights: 0.60 to 2.00 m
Weight: 70 kg Heaviest single part
925 kg a total of
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.
Anbauteile
– Bügelgeländer, abrollverhindernd, aus Edelstahlrohr
– Stufengeländer aus Edelstahlrohr, Ø 33,7 x 2 mm
– Tandemgeländer aus Edelstahlrohr, Ø 33,7 x 2 mm
– Wackelstiege an Tandemtraverse, Laufhölzer aus Robinie Ø 100 mm, feingliedrige Geländerketten aus Edelstahl
– Kettenleiter mit Edelstahlsprossen
– Kletternetz aus Forta-Herkules-Seil an Edelstahltraverse
– Klettersprossen aus Edelstahlrohr, Ø 38 x 2,5 mm, verdrehungssicher
– Kraxelwand aus Robinienholz mit aufgesetzten Kletterelementen aus HPL-Schichtstoffplatte
– Kletterstange aus Edelstahlrohr
– Hangelleiter, 0,80 m x 2,40 m, waagerecht, aus Edelstahlrohr, 38 x 2,5/33,7 x 2 mm
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
19 pieces 0.40 x 0.40 x 0.40 m
Amount of concrete: 1.32 m³
Free fall height
2.32 m
