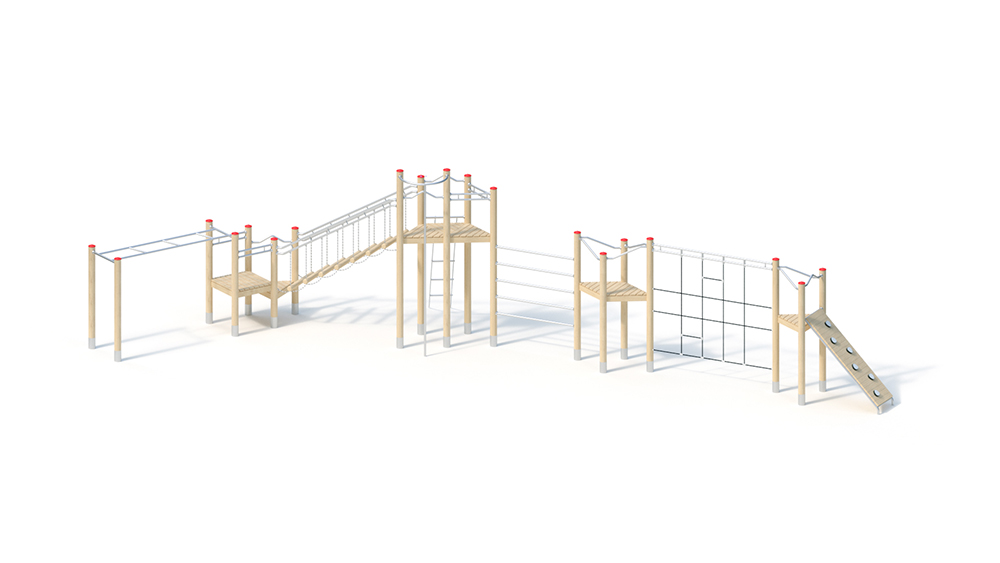

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.
sports activities.

Techincal Specifications

Lifting Device


Total Length

13.65 m

Total Width

5.15 m

Total Height

3.25 m

Minimum Space Length

16.85 m

Minimum Space Width

8.30 m

Minimum Space Height

3.25 m

Heaviest Single Piece

70.00 kg

(Total) Weight

925.00 kg

Free Height of Fall

2.35 m

Platform Heights

0.60 m, 0.80 m, 1.40 m, 2.00 m


Foundation 1

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

19 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

8 h

Assembly Details

Assembly time 2 fitters 8 hours each (without foundation creation)

Technical Data

Technical data
Total height: 3.25 m
Base area: 5.15 x 13.65 m
Minimum space: 8.30 x 16.85 m (82 m²)
Platform heights: 0.60 to 2.00 m
Weight: 70 kg Heaviest single part
925 kg a total of

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

– Ironing railings, abrollverhindernd, stainless steel pipe
– x 2 mm steps railings, stainless steel pipe, Ø 33.7
Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm –
– Loose stairs to Tandem Traverse, running timber from Robinia Ø 100 mm, delicate railing chains made of stainless steel
– ladder with stainless steel rungs – climbing net made
of Forta Hercules rope on stainless steel traverse – climbing rungs made of stainless steel pipe,
Ø 38 x 2.5 mm, twist
-proof – climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– climbing
pole made of stainless steel pipe – hanging ladder, 0.80 x 2, 40 m horizontally, made of stainless steel tube, 38 x 2.5 / 33.7 x 2 mm

Metal components: stainless steel
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
19 pieces 0.40 x 0.40 x 0.40 m
Amount of concrete: 1.32 m³

Free fall height
2.35 m
