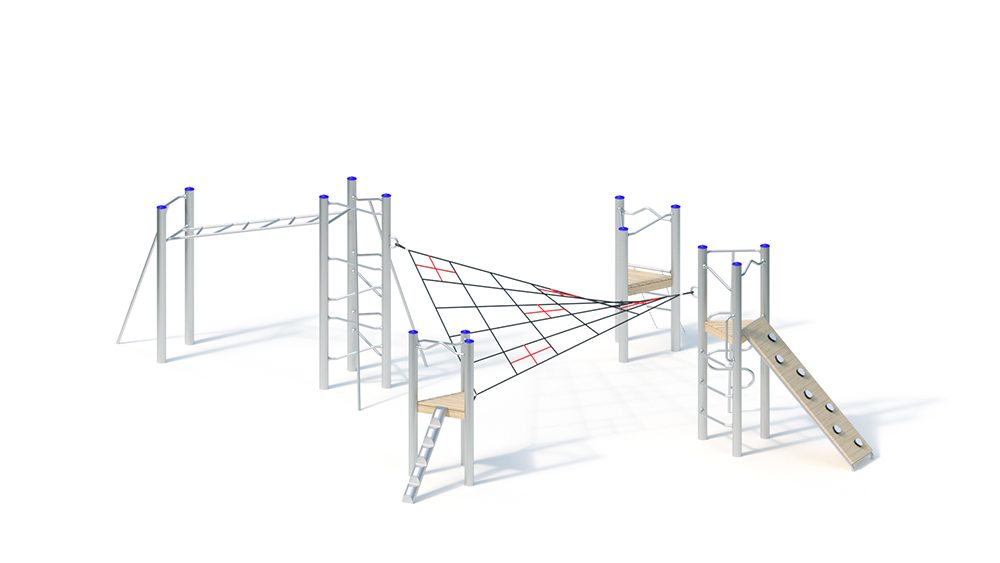

Climbing combination
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
10.70 m
Total Width
7.70 m
Total Height
2.65 m
Minimum Space Length
13.70 m
Minimum Space Width
10.70 m
Minimum Space Height
2.65 m
Heaviest Single Piece
80.00 kg
(Total) Weight
645.00 kg
Free Height of Fall
2.52 m
Platform Heights
1.00m, 1.60 m
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
7 h
Assembly Details
Installation time 2 fitters 6 hours each (without foundation creation)
Technical Data
Technical data
Total height: 2.63 m
Base area: 6.50 x 10.70 m
Minimum space: 9.50 x 13.70 m (90 m²)
Platform height: 1.60 m
Weight: 80 kg heaviest individual part
540 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts
– climbing
rungs made of stainless steel pipe , Ø 33.7 mm – inclined hanging ladder made of stainless steel pipe
– stair railing made of stainless steel pipe , Ø 33.7 x 2 mm, as a climbing
ascent – iron railing, anti-roll-off, made of stainless steel pipe, Ø 33.7 x 2 mm
– vertical handle as
Climbing aid made of stainless steel tube , Ø 33.7 x 2 mm – climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– curved rung ascent (climbing snake )
– triangular climbing wall 20 ° inclined, made of highly weather-resistant HPL laminate board, 20 mm. Frame made of stainless steel tubing, climbing openings.
– Inclined climbing pole, straight, inclination 20 °, made of stainless steel
– Triangular wall bars, inclined 20 °, made of stainless steel pipe, Ø 38 mm
– Climbing net made of Hercules rope Ø 18 mm, black, with 5 crosses made of Forta Hercules rope Ø 16 mm, red; Net suspension on stainless steel posts with aluminum thimbles and stainless steel brackets Ø 30 mm
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.60 m
4 pcs. 0.50 x 0.50 x 0.60 m
10 pieces. 0.30 x 0.30 x 0.40 m
amount of concrete: 1.54 m³
Free fall height
2.52 m
