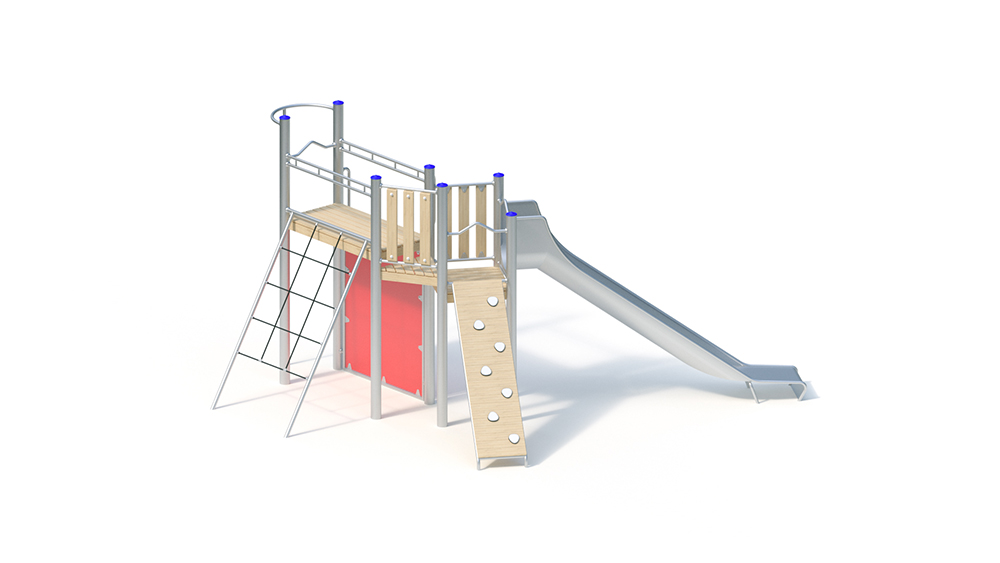

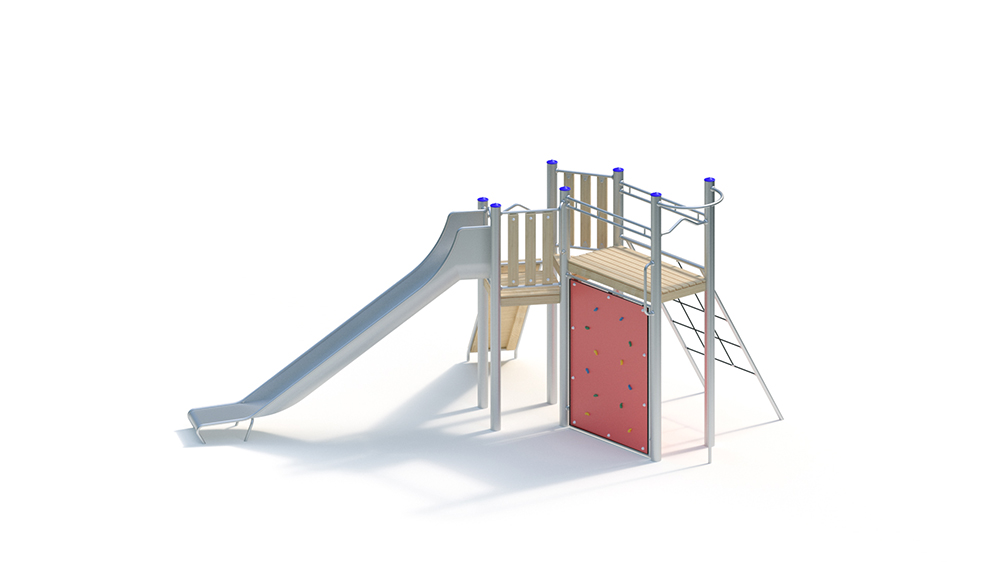

Climbing combination

-+

Public Playgrounds

Slide

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

-

6.73 m

4.09 m

3.23 m

10.23 m

7.47 m

3.23 m

100.00 kg

640.00 kg

2.12 m

1.60 m, 1.80 m, 2.00 m

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

7 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

5 h

Assembly time 2 fitters each 5 hours (without foundation creation)

Technical data
Total height: 3.23 m
Base area: 6.73 x 4.09 m
Minimum space: 10.23 x 7.47 m (45 m²)
Platform heights: 1.60 / 1.80 / 2.00 m Slide installation height
: 1, 60 m
seat height: 1.70 m
slide inclination: 36 °
slide width: 0.60 m
slide plate thickness: 2.5 mm
weight: 100 kg heaviest individual part
640 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel (blue / RAL 5015).

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– Robinia wood balustrade, 125 x 30 mm, fastening between stainless steel pipes
Ø 33.7 x 2 mm
– Tandem railing made of stainless steel pipe, Ø 33.7 x 2 mm – Upright railing, anti-roll-off, made of stainless steel pipe, Ø 33.7 x 2 mm
– Enternetz made of Hercules rope on a stainless steel
frame – climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm, in a frame made of stainless steel tubing; with free
climbing elements attached on one side – vertical handle as a climbing
aid made of stainless steel tube , Ø 33.7 x 2 mm – climbing wall made of robinia wood with attached climbing elements made of HPL laminate board – climbing pole made of stainless steel tube
, Ø 38 mm
– Add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
7 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.68 m³

Free fall height
2.10 m
