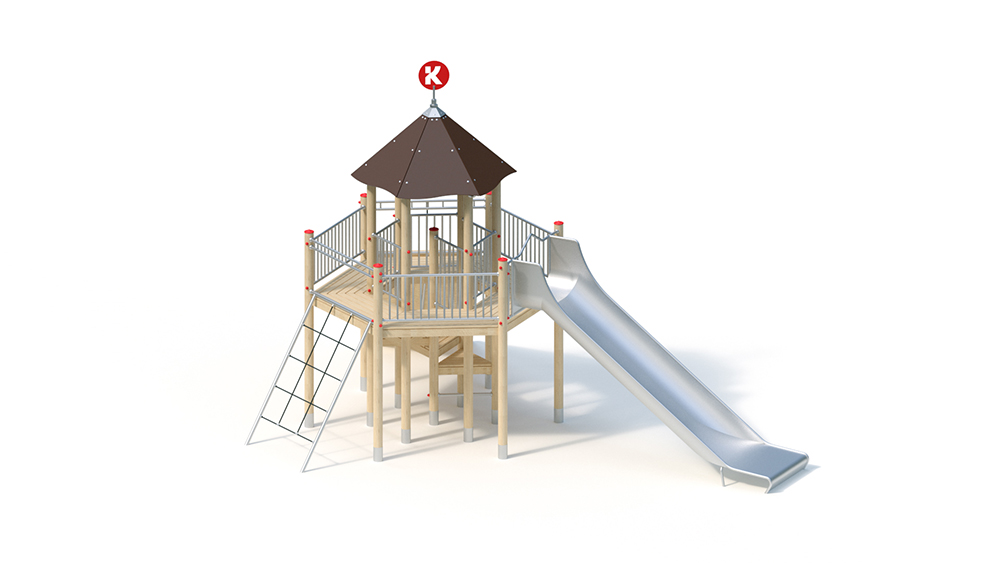

Climbing combination

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

Techincal Specifications

Lifting Device


Total Length

7.30 m

Total Width

5.65 m

Total Height

4.95 m

Minimum Space Length

10.80 m

Minimum Space Width

8.65 m

Minimum Space Height

4.95 m

Heaviest Single Piece

190.00 kg

(Total) Weight

1330.00 kg

Free Height of Fall

1.90 m

Platform Heights

0.80 m, 1.00 m, 1.20 m, 1.40 m, 1.60 m, 1.80 m


Foundation 1

3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

13 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

10 h

Assembly Details

Assembly time 2 fitters 10 hours each + lifting gear (without foundation creation

Technical Data

Technical data
Total height: 4.95 m
Base area: 5.65 x 7.30 m
Minimum space: 8.65 x 10.80 m (62 m²)
Platform height: 0.80 to 1.80 m
Sitting height: 1.90 m
Weight: 190 kg heaviest single part
1330 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

– Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
– Lattice balustrade made of stainless steel tube, Ø 33.7 x 2/25 x 2 mm, one-piece welded construction
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Tent roof, slope 45 °, made of highly weather-resistant HPL laminate board, 13 mm. Fastening to the roof frame made of stainless steel tube Ø 33.7 x 2 mm, with wind chime
– Enternnet made of Hercules rope on stainless steel
traverse – Extension wide slide, 1.10 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll fall protection above the single seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
3 pcs. 0.30 x 0.30 x 0.40 m
13 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 1.14 m³

Free fall height
1.90 m
