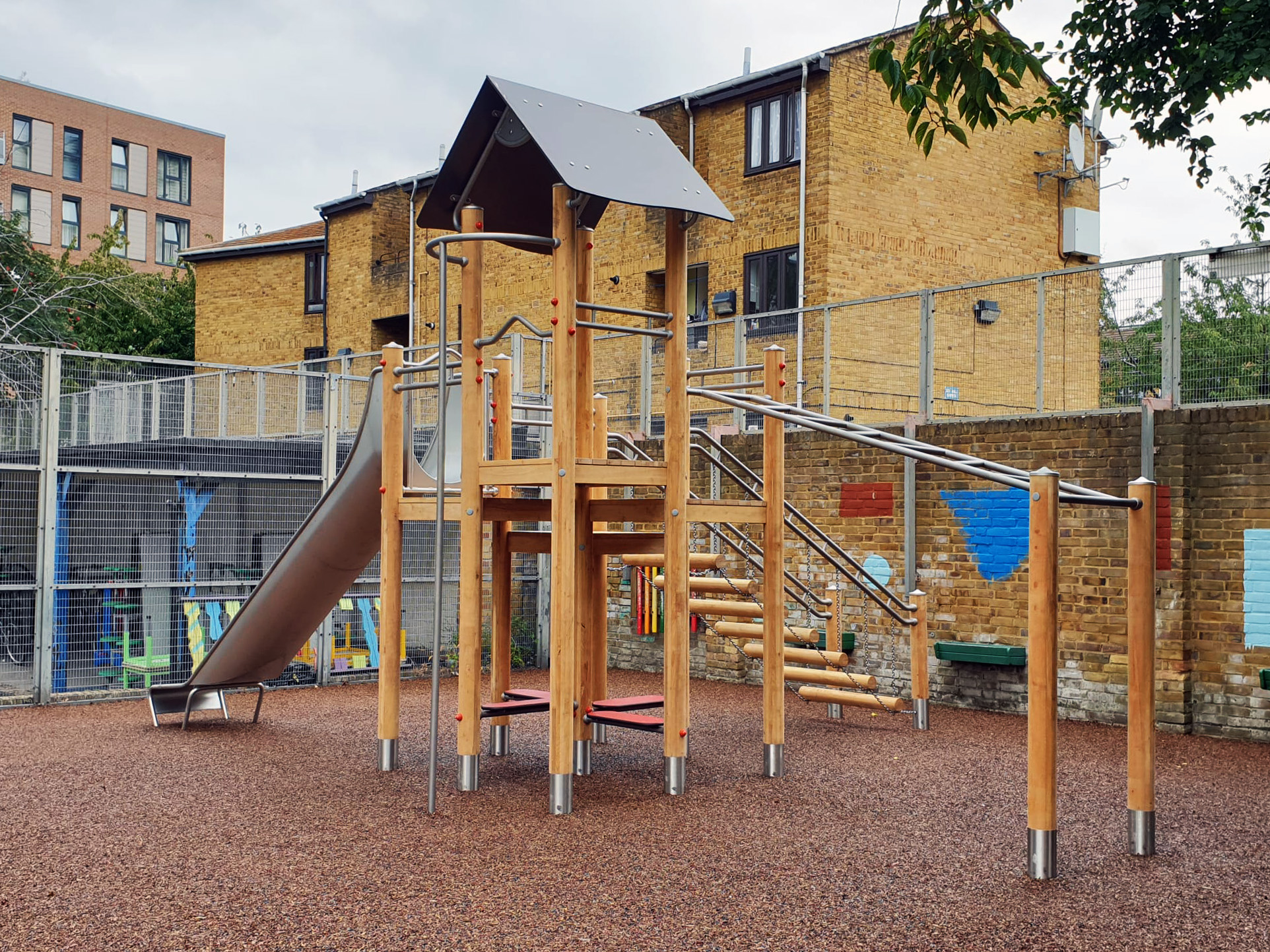

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.

-

7.45 m

4.60 m

3.85 m

11.00 m

7.85 m

3.85 m

100.00 kg

725.00 kg

2.25 m

1.40 m, 1.60 m, 1.80 m

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

13 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

8 h

Assembly time 2 fitters 8 hours each (without foundation creation)

Technical data
Floor area: 4.60 x 7.45 m
Minimum space: 7.85 x 11.00 m (65 m²)
Total height: 3.85 m
Platform height: 1.40 / 1.60 / 1.80 m
Seat height: 1, 70 m
Weight: 100 kg heaviest single part
725 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Anbauteile
– Bügelgeländer, abrollverhindernd, aus Edelstahlrohr, Ø 33,7 x 2 mm
– Tandemgeländer aus Edelstahlrohr, Ø 33,7 x 2 mm
– Wackelstiege an Tandemtraverse, Laufhölzer aus Robinie Ø 10 cm. Feingliedrige Geländerketten aus Edelstahl
– Giebeldach, Neigung 45°, aus höchst witterungsbeständiger HPL-Schichtstoffplatte, 13 mm. Befestigung an Dachrahmen aus Edelstahlrohr Ø 33,7 x 2 mm
– Sitz: aus farbiger, höchst witterungsbeständiger HPL-Schichtstoffplatte, 20 mm
– Kletterstange aus Edelstahlrohr, Ø 38 mm
– Hangelleiter aus Edelstahlrohr
– Anbau-Muldenrutsche, 0,60 m breit, einteilige Edelstahlkonstruktion, Blechdicke: 2,5 mm, mit abrollverhindernder Absturzsicherung über dem Einsitzteil

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
13 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
amount of concrete: 0.99 m³

Free fall height
2.25 m
