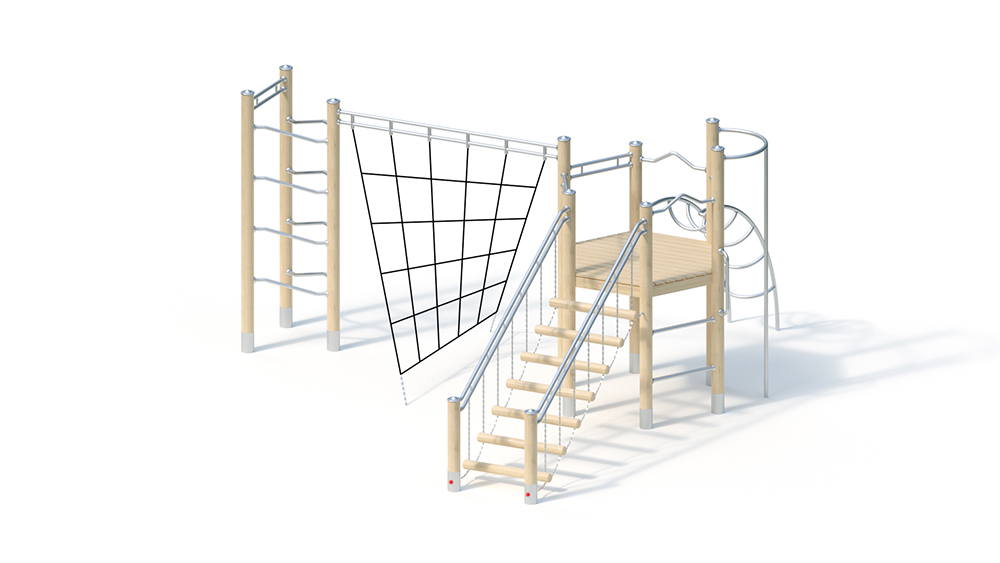

Climbing combination
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
-
Total Length
5.05 m
Total Width
5.55 m
Total Height
2.65 m
Minimum Space Length
8.70 m
Minimum Space Width
8.55 m
Minimum Space Height
2.65 m
Heaviest Single Piece
65.00 kg
(Total) Weight
480.00 kg
Free Height of Fall
2.50 m
Platform Heights
1.40 m
Foundations
Foundation 1
11 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
3 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
7 h
Assembly Details
Assembly time 2 fitters 7 hours each (without foundation creation)
Technical Data
TECHNICAL DRAWING (3D)
Technical data
Total height: approx. 2.65 m
Base area: approx. 5.05 x 5.55 m
Minimum space: approx . 8.70 x 8.55 m (56 m²)
Platform height: 1.40 m
Weight: 65 kg heaviest individual part
480 kg total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with continuous bolt connections.
Attachments
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– climbing rungs made of stainless steel pipe, Ø 33.7 mm or Ø 38 x 2 x 2.5 mm
– Wiggling stairs on tandem traverse, running timbers made of robinia Ø 100 mm, delicate handrail chains made of stainless steel
– vertical climbing pole made of stainless steel tube , Ø 38 x 2 mm
– vertical handle as a climbing aid made of stainless steel tube , Ø 33.7 x 2 mm
– climbing net made of Hercules rope on stainless steel traverse, rotated by 90 °
– arched ladder made of stainless steel tube Ø 38 x 2 mm
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
11 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
Amount of concrete: 0.81 m³
Free fall height
2.50 m
