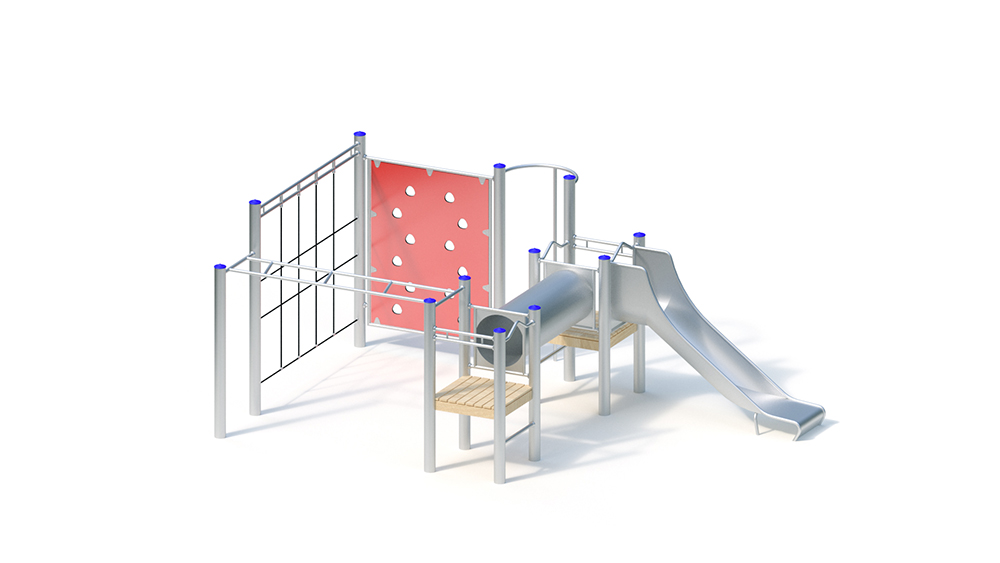

Climbing combination

5+

Public Playgrounds

Slide

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

-

5.46 m

3.76 m

2.33 m

9.41 m

7.35 m

2.33 m

80.00 kg

615.00 kg

2.22 m

0.80 m

12 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Floor area: 3.76 x 5.46 m
Minimum space: 7.35 x 9.41 m (52 ​​m²)
Total height: 2.33 m
Platform height: 0.80 m
Seat height: 0.90 m
Weight: 80 kg heaviest individual part
615 kg in total

Support
posts Support posts made of stainless steel Ø 120 mm, covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– Tandem handrails of stainless steel pipe, Ø 33.7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Crawling: Ø 56 cm, stainless steel plate, 2.5 mm
– Hangelleiter stainless steel tube
– climbing net from Hercules rope on stainless steel
traverse
– climbing wall made of highly weather-resistant HPL laminate board, 20 mm, frame made of stainless steel tube, 12 climbing openings – climbing pole made of stainless steel tube , Ø 38 mm
– climbing rungs made of stainless steel tube , Ø 38 mm, twist
-proof – add-on trough slide, 0.60 m wide, one-piece Stainless steel construction, sheet thickness: 2.5 mm, with anti-roll protection against falling over the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
12 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
Amount of concrete: 0.92 m³

Free fall height
2.22 m
