0-22041-504

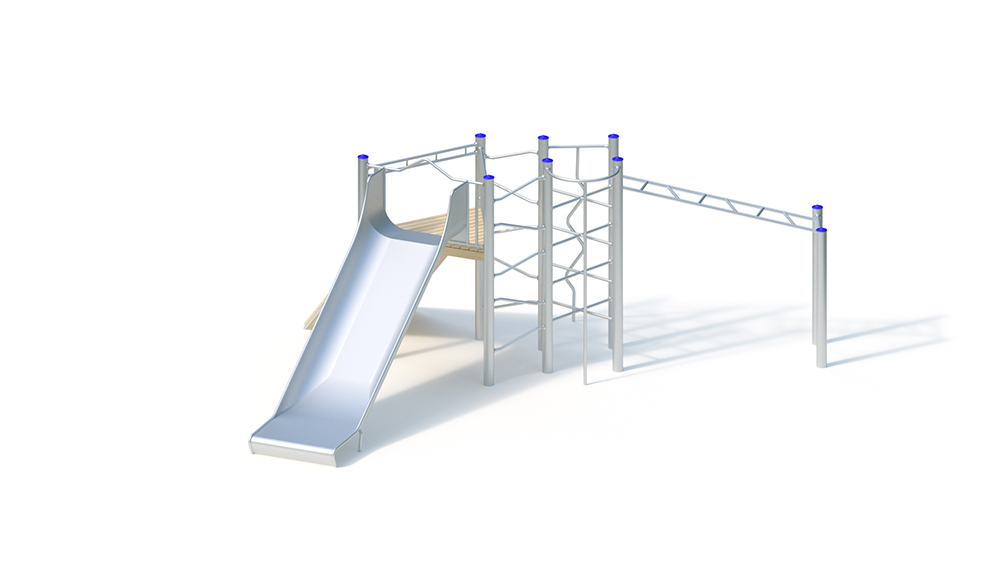

Climbing combination

Key Attributes

Age Group

-+

Area of Use

-

Activity

Slide

Suitable for

Suitable for
children aged 5 and over,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device

-

Total Length

6.50 m

Total Width

5.95 m

Total Height

2.60 m

Minimum Space Length

10.10 m

Minimum Space Width

9.15 m

Minimum Space Height

3.20 m

Heaviest Single Piece

145.00 kg

(Total) Weight

650.00 kg

Free Height of Fall

2.30 m

Platform Heights

1.60 m

Foundations

Foundation 1

5 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

Foundation 2

9 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 3

1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

6 h

Assembly Details

Installation time 2 fitters 6 hours each (without foundation creation)

Technical Data

Technical data
Total height: approx. 2.60 m
Base area: approx. 5.95 x 6.50 m
Minimum space: 9.15 x 10.10 m (57 m²)
Platform height
: 1.60 m
Slide installation height: 1.60 m Seat height: 1.70 m
slide inclination: 36 °
slide width: 1.10 m
slide plate thickness: 2.5 mm
weight: 145 kg heaviest single part
650 kg in total

Support
posts Support posts made of stainless steel tube, Ø 120 mm, covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.

Attachments
– lattice balustrade made of stainless steel tube
, Ø 33.7 x 2/25 x 2 mm, one-piece welded construction – tandem railing made of stainless steel tube , Ø 33.7 x 2 mm
– inclined climbing rungs made
of stainless steel
tube , Ø 33.7 mm – climbing cross made of stainless steel tube – climbing wall made of Robinia wood with attached climbing
elements made of HPL laminate board – hanging ladder made of stainless steel tube
– vertical climbing pole made of stainless steel tube , Ø 38 mm, on a half -round tube
– inclined climbing
pole, corrugated, inclination 20 ° made of stainless steel – add-on wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness : 2.5 mm, with anti-roll-off fall protection above the seat part

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
5 pcs. 0.30 x 0.30 x 0.40 m
9 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
amount of concrete: 0.96 m³

Free fall height
2.42 m
