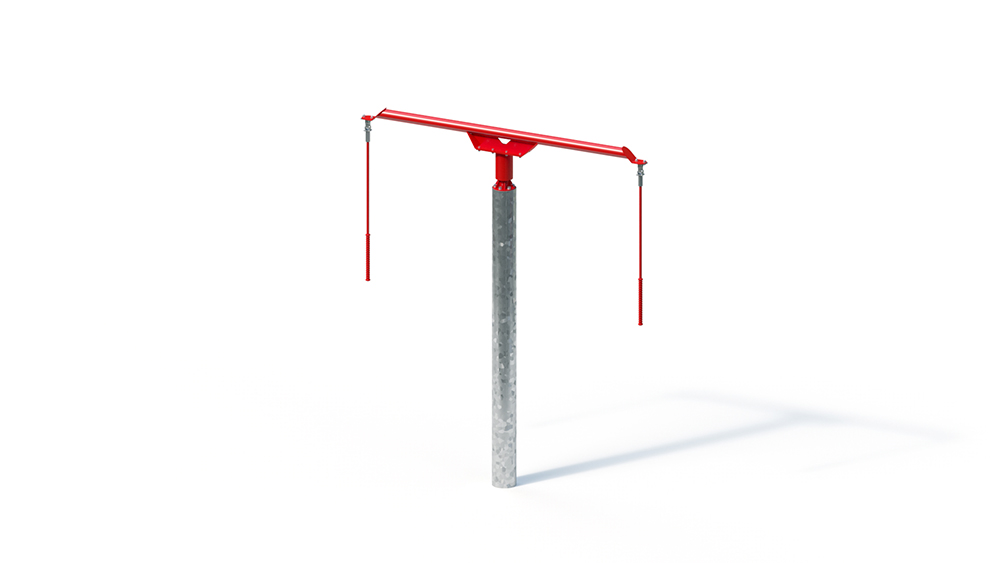

Circular run with handle ropes
Key Attributes
Age Group
10+
Area of Use
Public Playgrounds
Activity
Rock
Suitable for
Suitable for
children from 10 years,
public playgrounds etc.,
physical activity.
Techincal Specifications
Lifting Device
-
Total Length
2.50 m
Total Width
0.20 m
Total Height
3.09 m
Minimum Space Length
9.80 m
Minimum Space Width
9.80 m
Minimum Space Height
3.09 m
Heaviest Single Piece
150.00 kg
(Total) Weight
210.00 kg
Free Height of Fall
1.75 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 1.00 x 1.00 x 0.80 m volume: 0.80 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
2 h
Assembly Details
Assembly time 2 fitters 2 hours each (without foundation creation)
Technical Data
Technical data
Base area: 0.20 x 2.50 m
Minimum space: Ø 9.80 m (76 m²)
Impact area: 76 m²
Total height: 3.09 m
Weight: 150 kg, heaviest individual part
210 kg in total
– Post made of steel tube, hot-dip galvanized, with base plate – Rotary beam, hot-dip galvanized
steel, additionally powder-coated and stove-enamelled, color: red (RAL 2002)
– Rotary mechanism: multiple roller-bearing axis in a dirt-protected, tamper
-proof bearing housing
– Universal joints made of stainless steel with ball-bearing swivel swivels – Pendulum: Herkules rope Ø 22 mm, rope color red, on a stainless steel chain with thermally pressed, flexible rubber handle
Foundation (on site)
1 pc. 1.00 x 1.00 x 0.80 m
amount of concrete: 0.80 m³
Free fall height
1.75 m
