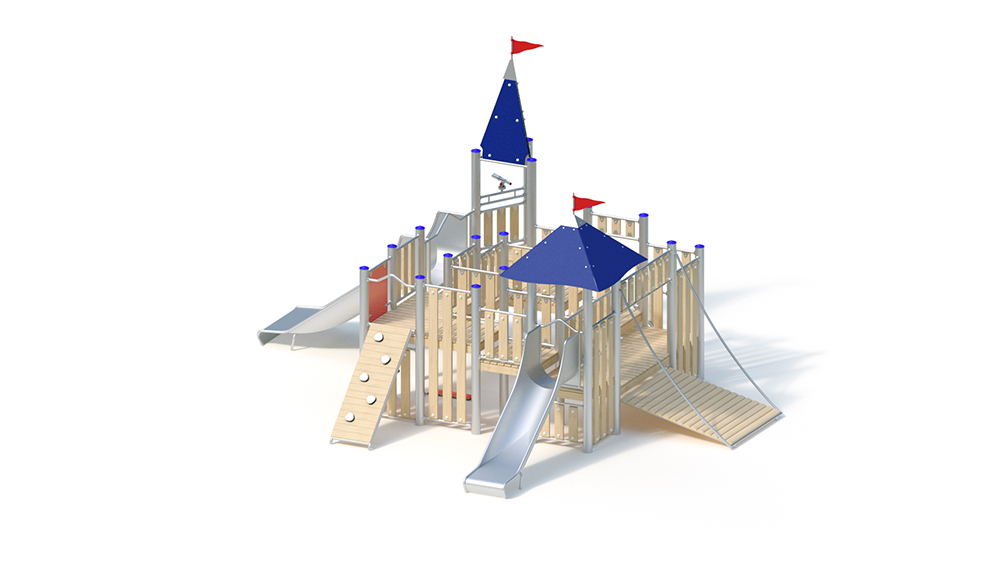

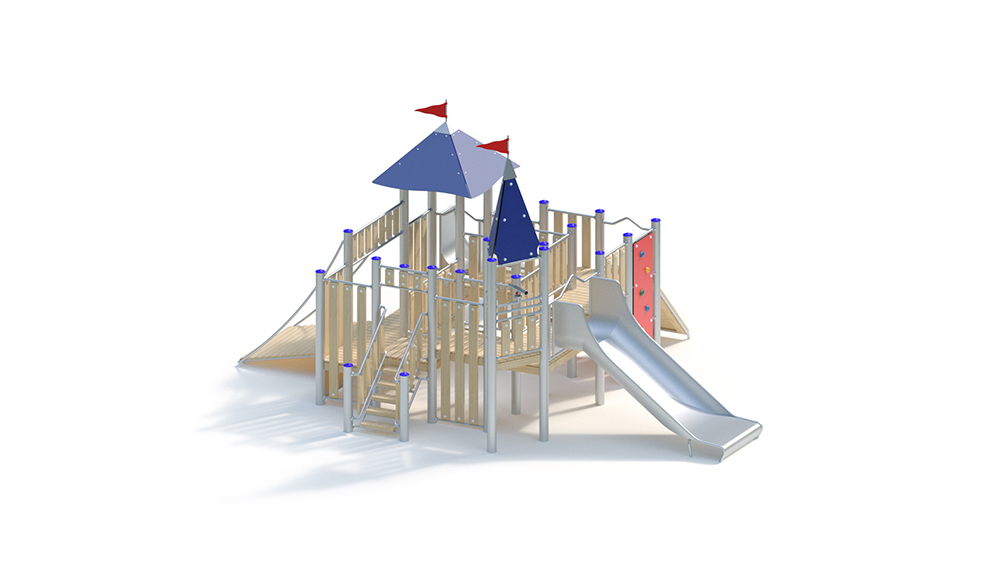

Castle complex
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 3 years,
public playgrounds,
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
7.30 m
Total Width
6.30 m
Total Height
4.15 m
Minimum Space Length
10.80 m
Minimum Space Width
9.80 m
Minimum Space Height
4.15 m
Heaviest Single Piece
110.00 kg
(Total) Weight
1715.00 kg
Free Height of Fall
1.95 m
Platform Heights
0.60 m, 0.80 m, 1.00 m, 1.20 m
Foundations
Foundation 1
5 pieces - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 2
24 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
1 piece - 0.75 x 0.40 x 0.40 m volume: 0.12 m3
Foundation 4
1 piece - 1.25 x 0.40 x 0.40 m volume: 0.20 m3
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
16 h
Assembly Details
Assembly time 2 fitters 16 hours each (without foundation creation)
Technical Data
Technical specifications
Surface area: 6.30 x 7.30 m
minimum area: 9.70 x 10.80 m (71 m)
Overall height: 4.15 m
platform height: 0.60 / 0.80 / 1.00 / 1.20 / m
slipping attachment height : 0.80 / 1.00 m
Single seat height: 0.90 / 1.10 m
Weight: 110 kg heaviest single part
1715 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with claw-shaped tips and a continuous bolt connection.
Attachment parts – iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– wooden parapet made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
– ramp made of profile boards, 95 x 30 mm
– extension stairs with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Incline height of the steps 133 mm
– stair railing made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
– telescope horizontally rotatable 360 °, vertically adjustable
– climbing wall made of highly weather-resistant HPL laminate board (red), 20 mm, fastening between stainless steel tubes, with Free climbing elements attached on one side
– Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
– Seat made of highly weather-resistant HPL laminate board (red), 20 mm
– Tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel hood and wind vane (red)
– tower roof, inclination 80 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, with stainless steel
hood and wind vane (red) – add-on trough slide, 0.60 m wide, one-piece stainless steel construction, sheet metal thickness: 2.5 mm, with anti-roll protection against falling over the single-seat part
– Extension wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll-off fall protection above the seat part
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
5 pcs. 0.30 x 0.30 x 0.40 m
24 pieces. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.75 x 0.40 m
1 pc. 0.40 x 1.25 x 0.40 m
Amount of concrete: 2 m³
Free fall height
1.95 m
