0-45210-000

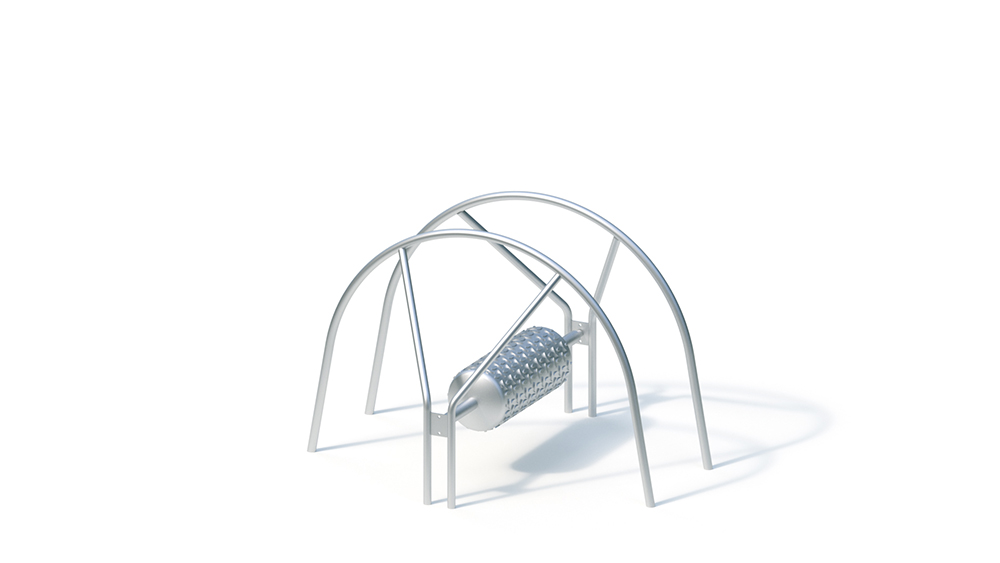

Caster
Key Attributes
Age Group
8+
Area of Use
Public PLaygrounds
Activity
Physical
Suitable for
Suitable for
children aged 8 and over,
public playgrounds, etc.
Exercise activities
Techincal Specifications
Lifting Device
-
Total Length
1.85 m
Total Width
1.55 m
Total Height
1.25 m
Minimum Space Length
4.85 m
Minimum Space Width
4.55 m
Minimum Space Height
1.25 m
Heaviest Single Piece
-
(Total) Weight
70.00 kg
Free Height of Fall
0.60 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
2 pieces - 0.50 x 0.40 x 0.40 m volume: 0.08 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 1.55 x 1.85 m
Minimum space: 4.55 x 4.85 m (20 m²)
Height: 1.25 m
Weight: 70 kg in total
–
Retaining bracket: stainless steel tube – Roller: profiled stainless steel sheet, self-lubricating slide bearings
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
2 pieces. 0.40 x 0.50 x 0.40 m
Amount of concrete: 0.42 m³
Free fall height
0.60 m
