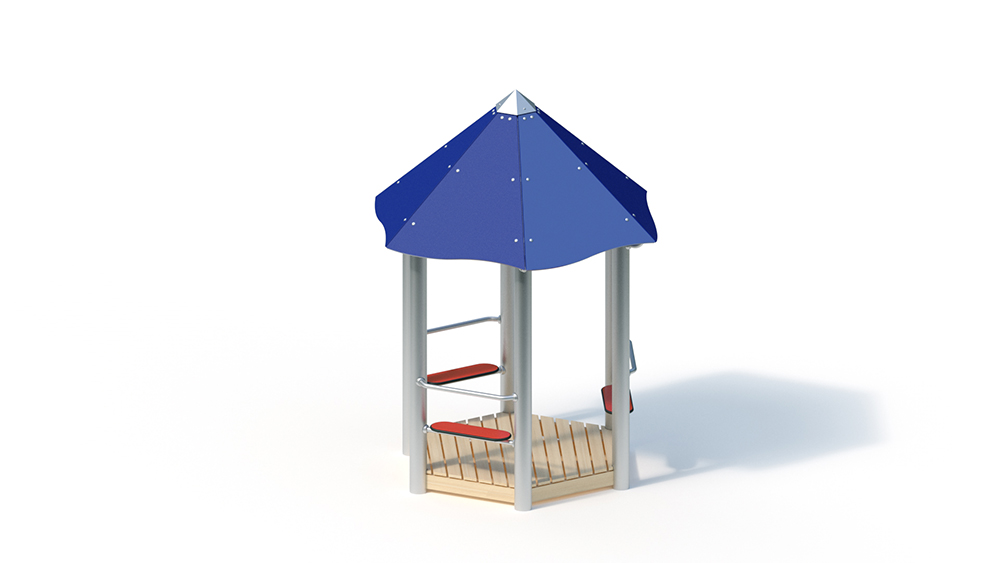

Canopy

1+

Public Playground

-

Suitable for
all age groups,
public playgrounds etc.

-

2.15 m

1.90 m

2.80 m

5.20 m

4.90 m

2.80 m

65.00 kg

310.00 kg

0.55 m

0.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation)

Technical data
Floor area: 1.90 x 2.15 m
Minimum space: 4.90 x 5.20 m (20 m²)
Total height: 2.80
m
Seat height: 0.35 m Platform height: 0.20 m
Weight: 65 kg heaviest individual part
310 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– railing made of stainless steel tube, Ø 33.7 x 2 mm, twist-proof
– tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm. Fastening to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– Seat: made of colored, highly weather-resistant HPL laminate board, 20 mm

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³
