0-57602-000

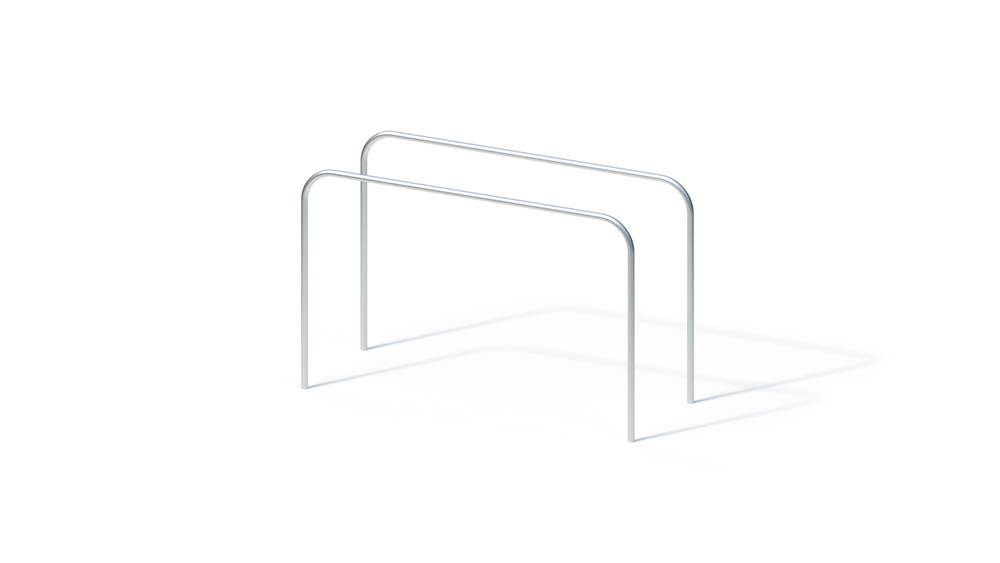

Calisthenics station

Key Attributes

Age Group

-+

Area of Use

Calisthenics

Activity

-

Suitable for

Suitable for
adolescents and adults
(minimum height 1.40 m)
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

0.64 m

Total Width

2.19 m

Total Height

1.42 m

Minimum Space Length

5.23 m

Minimum Space Width

3.68 m

Minimum Space Height

1.42 m

Heaviest Single Piece

-

(Total) Weight

62.00 kg

Free Height of Fall

1.42 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 1.20 x 0.40 x 0.40 m volume: 0.20 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 0.64 x 2.19 x 1.42 m
Minimum room: 5.23 x 3.68 x 1.42 m
Impact area: 18 m²
Total height: 1.40 m
Bar
heights: 1.40 m Free fall height: 1 , 40 m
weight: 35 kg heaviest single part
70 kg in total

Flyerbars Part 2 tubular
frame made of stainless steel tube Ø 42.4 x 4.85 mm

Foundations (on site)
2 pcs. 1.20 x 0.40 x 0.40 m
amount of concrete: 0.4 m³
