0-57610-900

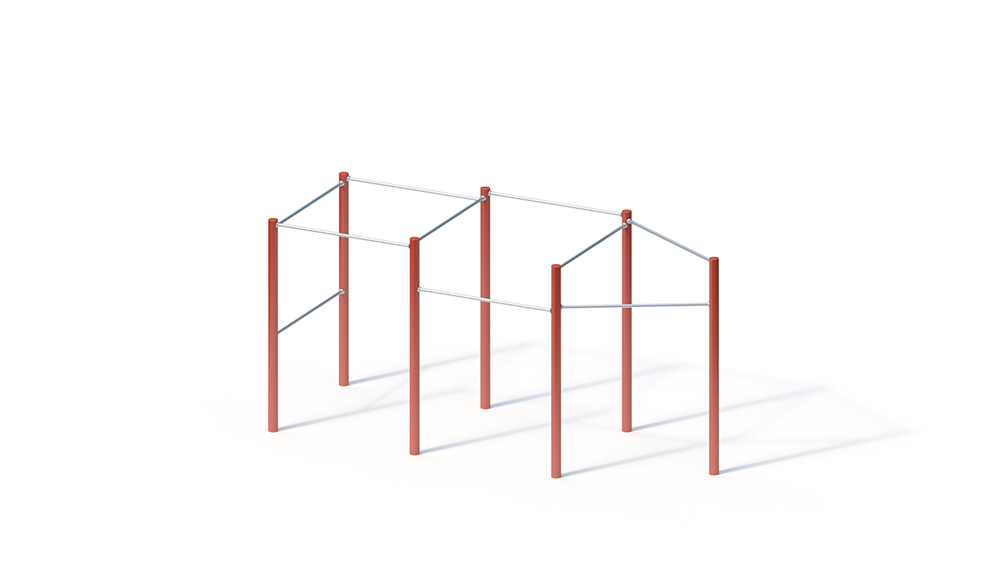

Calisthenics station
Key Attributes
Age Group
-+
Area of Use
Calisthenics
Activity
-
Suitable for
Suitable for
calisthenics
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
5.30 m
Total Width
1.95 m
Total Height
2.66 m
Minimum Space Length
9.70 m
Minimum Space Width
6.40 m
Minimum Space Height
2.66 m
Heaviest Single Piece
31.00 kg
(Total) Weight
210.00 kg
Free Height of Fall
1.64 m
Platform Heights
-
Foundations
Foundation 1
7 pieces - 0.50 x 0.50 x 0.40 m volume: 0.10 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Equipment room: 5.30 x 1.95 x 2.66 m
Minimum space: 9.70 x 6.40 x 2.66 m
Impact area: 53 m²
Total height: 2.66 m
Bar heights: 1.15 / 2.00 / 2.05 / 2.45 / 2.50 / 2.55 / 2.60 m
Free fall height: 1.64 m
Weight: 31 kg Heaviest single part
210 kg in total
Jordansbars Pro
posts made of stainless steel tube Ø 114.3 x 3 mm Horizontal bars made of stainless steel tube
Ø 38 x 5 mm
Foundations (on site)
7 pcs. 0.50 x 0.50 x 0.40 m
amount of concrete: 0.7 m³
