0-57608-900

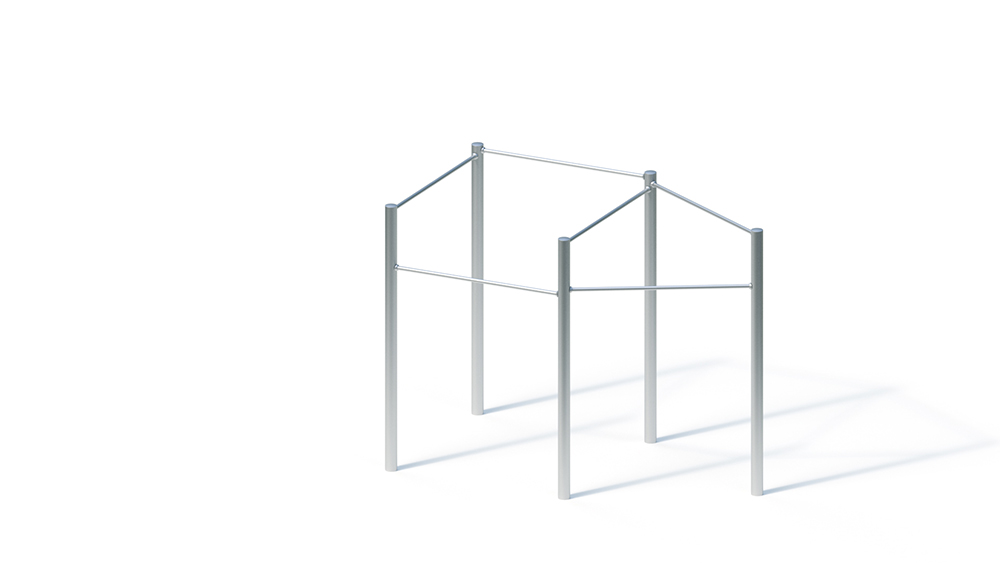

Calisthenics station

Key Attributes

Age Group

-+

Area of Use

Calisthenics

Activity

-

Suitable for

Suitable for
calisthenics
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

3.50 m

Total Width

1.95 m

Total Height

2.65 m

Minimum Space Length

7.95 m

Minimum Space Width

6.40 m

Minimum Space Height

2.65 m

Heaviest Single Piece

31.00 kg

(Total) Weight

150.00 kg

Free Height of Fall

1.55 m

Platform Heights

-

Foundations

Foundation 1

5 pieces - 0.50 x 0.50 x 0.40 m volume: 0.10 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 3.50 x 1.95 x 2.65 m
Minimum space: 7.95 x 6.40 x 2.65 m
Impact area: 42 m²
Total height: 2.65 m
Bar heights: 2.00 / 2.05 / 2.50 / 2.55 / 2.60 m
Free fall height: 1.55 m
Weight: 31 kg Heaviest single part
150 kg in total

Jordansbars
support posts made of stainless steel tube Ø 114.3 x 3 mm, horizontal bars made of stainless steel tube
Ø 38 x 5 mm

Foundations (on site)
5 pcs. 0.50 x 0.50 x 0.40 m
amount of concrete: 0.5 m³
