0-57602-900

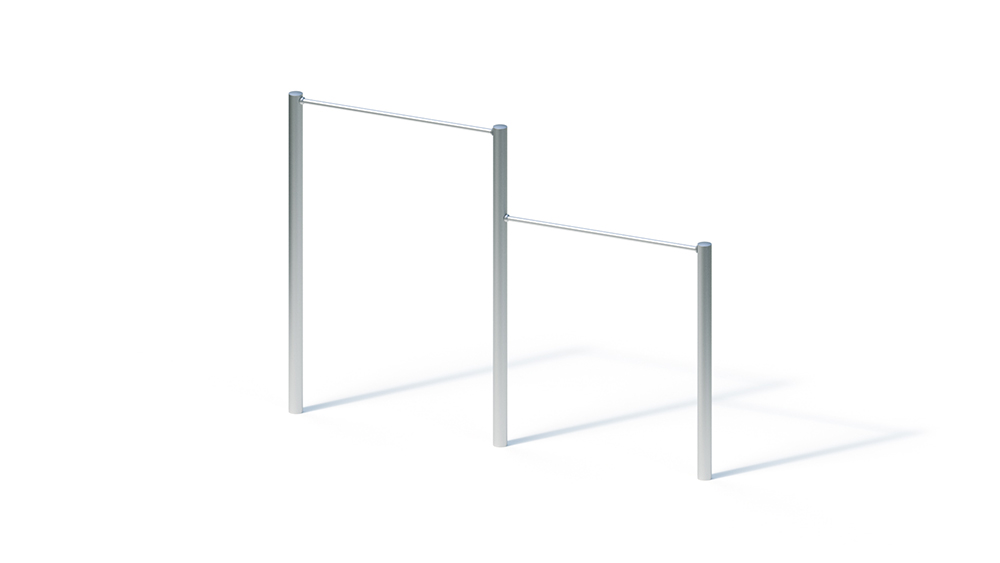

Calisthenics station

Key Attributes

Age Group

-+

Area of Use

Calisthenics

Activity

-

Suitable for

Suitable for
calisthenics
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

3.75 m

Total Width

0.11 m

Total Height

2.67 m

Minimum Space Length

6.79 m

Minimum Space Width

3.27 m

Minimum Space Height

2.97 m

Heaviest Single Piece

32.00 kg

(Total) Weight

88.00 kg

Free Height of Fall

1.62 m

Platform Heights

-

Foundations

Foundation 1

3 pieces - 1.40 x 0.50 x 0.60 m volume: 0.42 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

Technical data
Equipment room: 3.71 x 0.11 x 2.67 m
Minimum space: 6.79 x 3.27 x 2.97 m
Impact area: 20 m²
Total height: 2.67 m
Bar heights: 1.90 / 2.60 m
Free fall height: 1.62 m
Weight: 32 kg heaviest single part
88 kg in total

Flyer
bars stand posts made of stainless steel tube Ø 114.3 x 3 mm, horizontal bars made of stainless steel tube
Ø 38 x 5 mm

Foundations (on site)
3 pcs. 1.40 x 0.50 x 0.60 m
Amount of concrete: 1.3 m³
