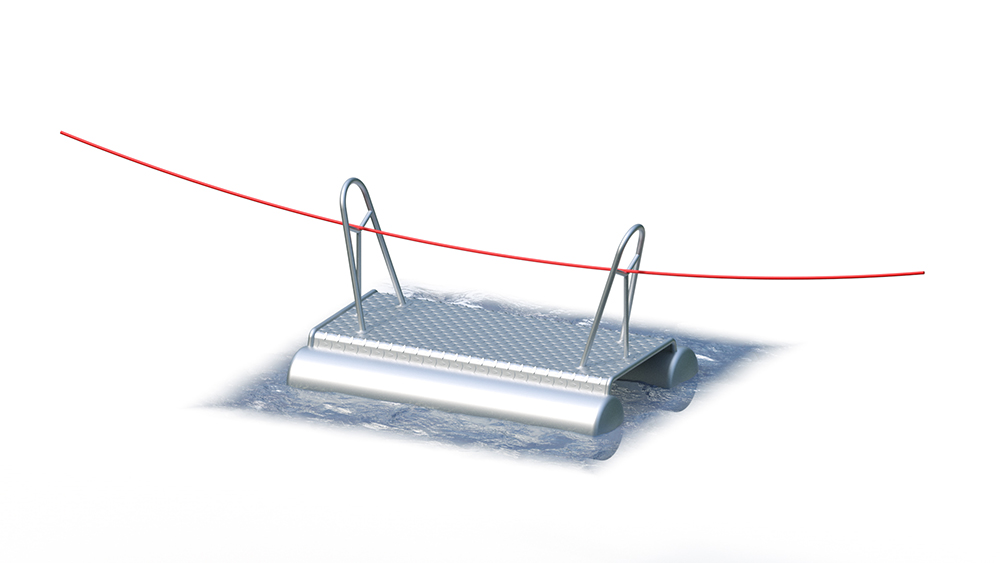

Cable ferry

Key Attributes

Age Group


Area of Use

Supervised Playgrounds


physical Activity

Suitable for

Suitable for
children from 5 years of age
supervised playgrounds, etc.
physical activity.

Techincal Specifications

Lifting Device


Total Length

2.20 m

Total Width

1.40 m

Total Height

1.25 m

Minimum Space Length

2.20 m

Minimum Space Width

1.40 m

Minimum Space Height

1.25 m

Heaviest Single Piece


(Total) Weight

210.00 kg

Free Height of Fall

0.30 m

Platform Heights



Foundation 1


Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers


Assembly Time


Assembly Details

The assembly time is delivered in one piece

Technical Data

Technical data
Base: 1.40 x 2.20 m
Height: 1.25 m
Weight: 210 kg in total

– Floating body, welded stainless steel construction
– Platform made of profiled stainless steel sheet, dished bottom ø 400 x 90 x 4 mm
– Bracket, stainless steel tube unscrewable 38 x 2 mm
– Load capacity: approx. 200 kg
Please note the following:
1. For problem-free operation (use by several children or adults without touching the ground, etc.) a water depth of at least 0.60 m is required.
2. Due to the maximum water depth of 0.40 m specified in the standard for planning public playgrounds (DIN 18034), we recommend this cable ferry exclusively for supervised playgrounds.
3. For the use of the cable ferry outside of Germany, the national regulations applicable in the respective country regarding water and water depths in public playgrounds or in amusement parks must be observed.
4. In order to ensure sufficient rope tension and thus a small amount of slack in the ferry rope, the maximum permissible length of the ferry rope is 30.00 m.

Free fall height
0.30 m
