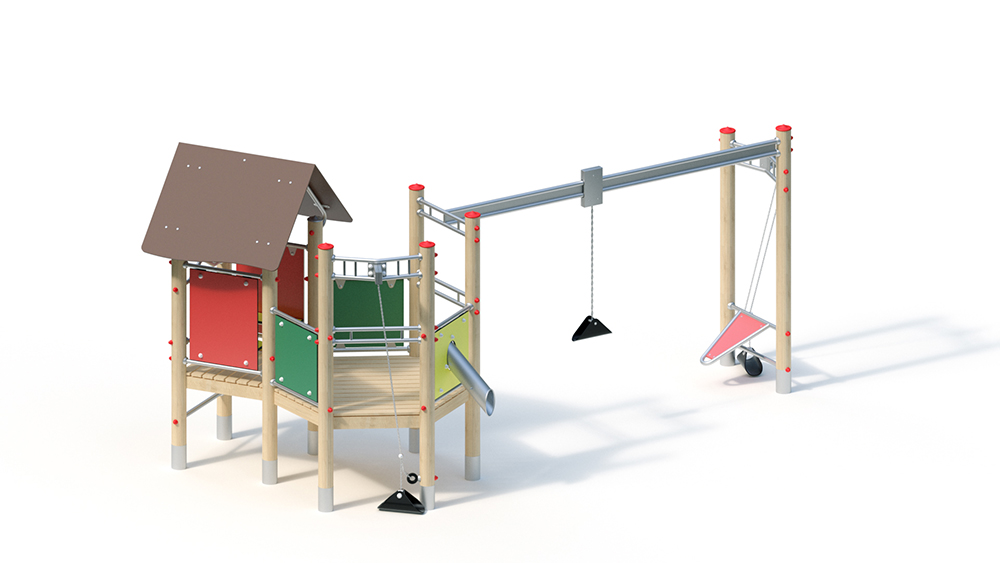

Building Yard

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for ages 5+,
public playgrounds etc.,
social / manual activities

Techincal Specifications

Lifting Device


Total Length

5.65 m

Total Width

2.85 m

Total Height

2.60 m

Minimum Space Length

8.65 m

Minimum Space Width

5.85 m

Minimum Space Height

2.60 m

Heaviest Single Piece

50.00 kg

(Total) Weight

510.00 kg

Free Height of Fall

0.80 m

Platform Heights

0.80 m


Foundation 1

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

7 h

Assembly Details

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical Data

Technical data
Floor area: 2.85 x 5.65 m
Minimum space: 5.85 x 8.65 m (36 m²)
Total height: 2.60 m
Platform height: 0.80 m

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.

Attaching parts
– plate balustrade colored, highly weather-resistant HPL plate
– bulk pipe wall from HPL plate with sand bulk pipe including butterfly valve, attachment between stainless steel tubes Ø 33,7 x 2 mm
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– Tandem railing Stainless steel tube, Ø 33.7 x 2 mm
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– climbing rungs made of stainless steel
– seat: made of colored, highly weather-resistant HPL laminate board, 20 mm
– Sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into adjacent play areas or open spaces – Sand slide made of stainless steel tube with
HPL laminate board, rail with sand transport trolley

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
10 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.64 m³

Free fall height
1.10 m
