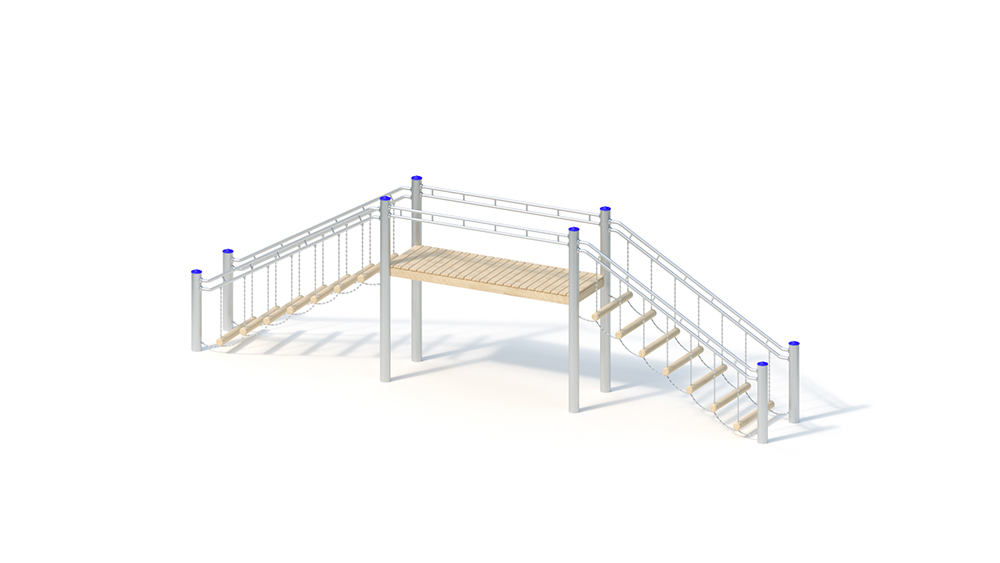

Bridge systems

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device


Total Length

7.38 m

Total Width

0.93 m

Total Height

2.23 m

Minimum Space Length

10.38 m

Minimum Space Width

3.93 m

Minimum Space Height

2.23 m

Heaviest Single Piece

80.00 kg

(Total) Weight

405.00 kg

Free Height of Fall

1.40 m

Platform Heights

1.40 m


Foundation 1

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Assembly time 2 fitters each 2.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 7.35 m
Minimum space: 3.95 x 10.35 m (39 m²)
Total height: 2.25 m
Platform height: 1.40 m
Weight: 80 kg, heaviest individual part
405 kg in total

posts Support posts made of stainless steel tube Ø 12 cm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts

Tandem railing made of stainless steel tube , Ø 33.7 x 2 mm – Wobble stairs on tandem traverse, running timbers made of robinia Ø 10 cm, delicate railing chains made of stainless steel

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³

Free fall height
1.40 m
