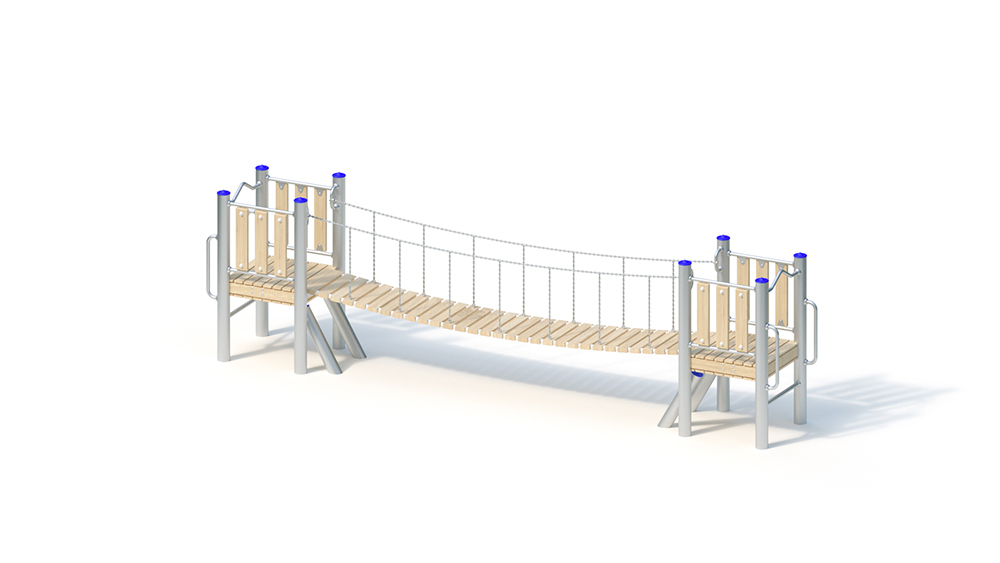

Bridge systems
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
physical Activity
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities
Techincal Specifications
Lifting Device
-
Total Length
6.00 m
Total Width
0.95 m
Total Height
1.75 m
Minimum Space Length
9.00 m
Minimum Space Width
3.95 m
Minimum Space Height
1.75 m
Heaviest Single Piece
100.00 kg
(Total) Weight
600.00 kg
Free Height of Fall
0.80 m
Platform Heights
0.80 m
Foundations
Foundation 1
8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
2 pieces - 1.00 x 0.60 x 0.50 m volume: 0.24 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
7h
Assembly Details
Assembly time 2 fitters 7 hours each (without foundation creation)
Technical Data
Technical data
Total height: 1.75 m
Base area: 0.95 x 6.00 m
Minimum space: 3.95 x 9.00 m (34 m²)
Platform height: 0.80 m
Weight: 100 kg heaviest individual part
600 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachments
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– suspension bridge drive timber 45 x 100 mm with distance blocks made of hard rubber 30 mm. Stainless steel suspension ropes Ø 10 mm with 4 tensioning devices, delicate handrail chains made of stainless steel. Support posts made of stainless steel Ø 120 mm.
– Robinia wood balustrade, 120 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm
– Climbing rungs made from stainless steel tube, Ø 33.7 mm
– Vertical handle as a climbing aid made from stainless steel tube, Ø 33.7 x 2 mm
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
2 pieces. 0.60 x 1.00 x 0.50 m
amount of concrete: 1.16 m³
Free fall height
0.80 m
