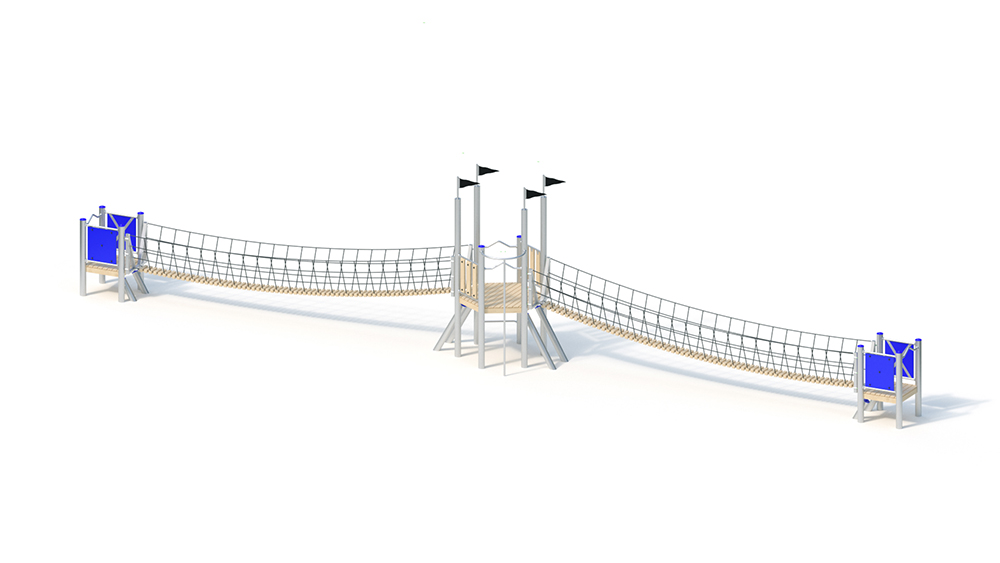

0-28200-502
Bridge systems
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Physical Activity
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
17.15 m
Total Width
1.95 m
Total Height
3.55 m
Minimum Space Length
20.15 m
Minimum Space Width
5.00 m
Minimum Space Height
3.55 m
Heaviest Single Piece
105.00 kg
(Total) Weight
1030.00 kg
Free Height of Fall
1.20 m
Platform Heights
0.60 m, 1.20 m
Foundations
Foundation 1
14 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3
Foundation 2
4 pieces - 1.00 x 0.60 x 0.60 m volume: 0.36 m3
Foundation 3
1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
8 h
Assembly Details
-
Technical Data
–
