0-63160-702

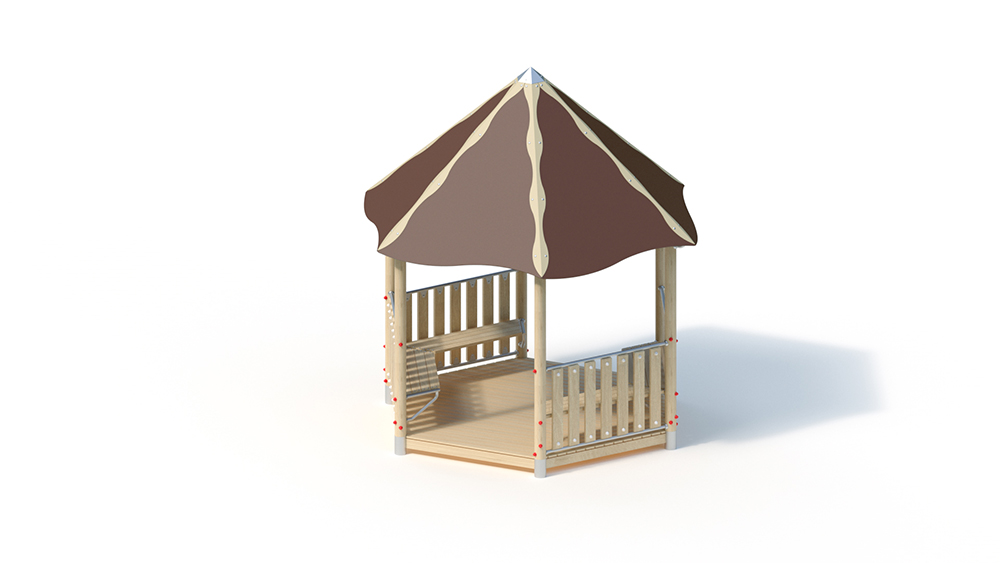

Bench pavilion

Key Attributes

Age Group

1+

Area of Use

Public Playground

Activity

-

Suitable for

Suitable for
all age groups,
public playgrounds etc.

Techincal Specifications

Lifting Device

Y

Total Length

3.35 m

Total Width

2.90 m

Total Height

3.95 m

Minimum Space Length

6.35 m

Minimum Space Width

5.90 m

Minimum Space Height

3.95 m

Heaviest Single Piece

230.00 kg

(Total) Weight

775.00 kg

Free Height of Fall

0.65 m

Platform Heights

0.20 m

Foundations

Foundation 1

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

7 h

Assembly Details

Assembly time 2 fitters 7 hours each + lifting gear (without foundation creation)

Technical Data

Technical data
Floor area: 2.90 x 3.35 m
Minimum space: 5.90 x 6.35 m (30 m²)
Total height: 3.95
m
Seat height: 0.45 m Platform height: 0.20 m
Weight: 230 kg heaviest individual part
775 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– wooden parapet made of robinia, 120 x 30 mm. Attachment between stainless steel tubes Ø 33.7 x 2 mm
– tent roof, inclination 45 °, made of highly weather-resistant HPL laminate board, 13 mm, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm, edge cover made of stainless steel
– robinia bench ledge 45 x 100 mm , planed, chamfered and free from rotten branches. Stainless steel substructure.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
6 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³

Free height of fall
0.65 m
