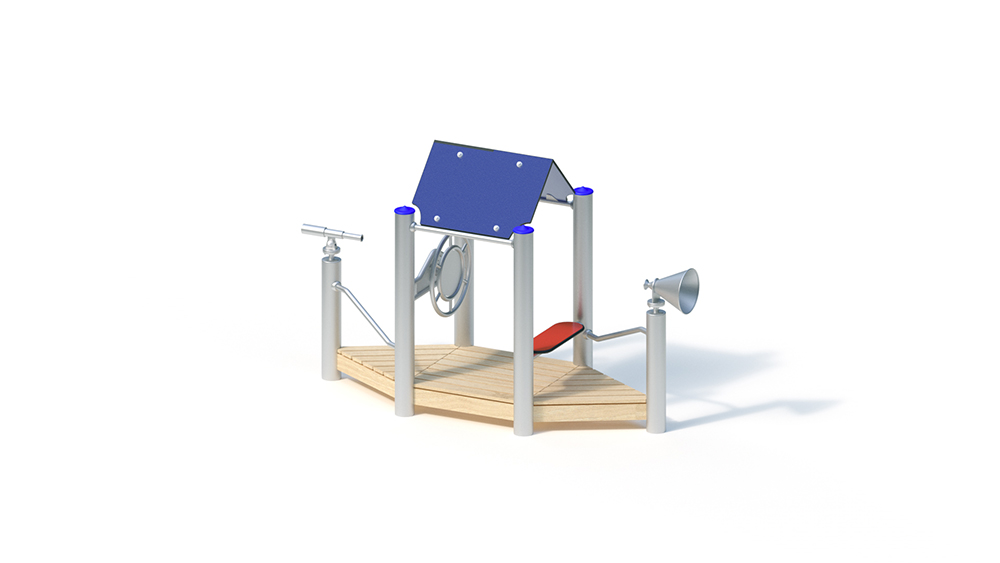

Barge

2+

Public Playgrounds

Social

Suitable for
children from 2 years,
public playgrounds etc.,
social / exercise activities.

-

2.65 m

0.95 m

1.65 m

5.65 m

3.95 m

1.65 m

30.00 kg

190.00 kg

0.50 m

0.20 m

6 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

2 h

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical data
Floor area: 0.95 x 2.65 m
Minimum space: 3.95 x 5.65 m (18 m²)
Total height: 1.65 m
Platform height: 0.20 m
Weight: 30 kg, heaviest individual part,
200 kg in total

Support
posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel (blue / RAL 5015).

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachments
– gable roof, inclination 45 °, made of highly weather-resistant HPL laminate board (royal blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– stair railing made of stainless steel tube, Ø 33.7 x 2 mm
– seat: from the highest Weatherproof HPL laminate
board , 20 mm (red) – Steering wheel: rotatable with snap-in
– Telescope can be rotated horizontally 360 °, vertically adjustable
– Megaphone can be rotated horizontally 360 °

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations (on site)
anchoring by ramming or
6 pcs. Foundations 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.38 m³

Free fall height
0.50 m
