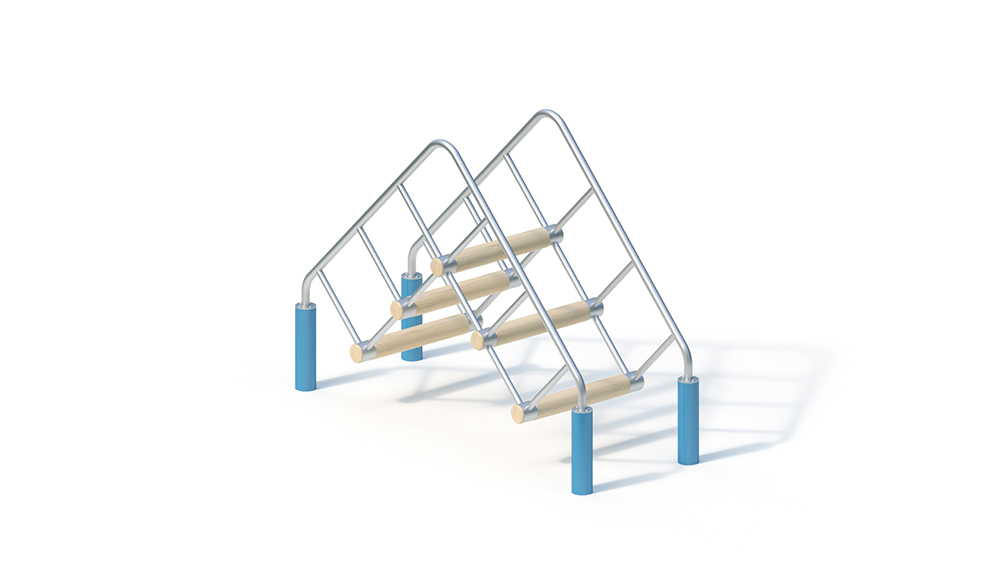

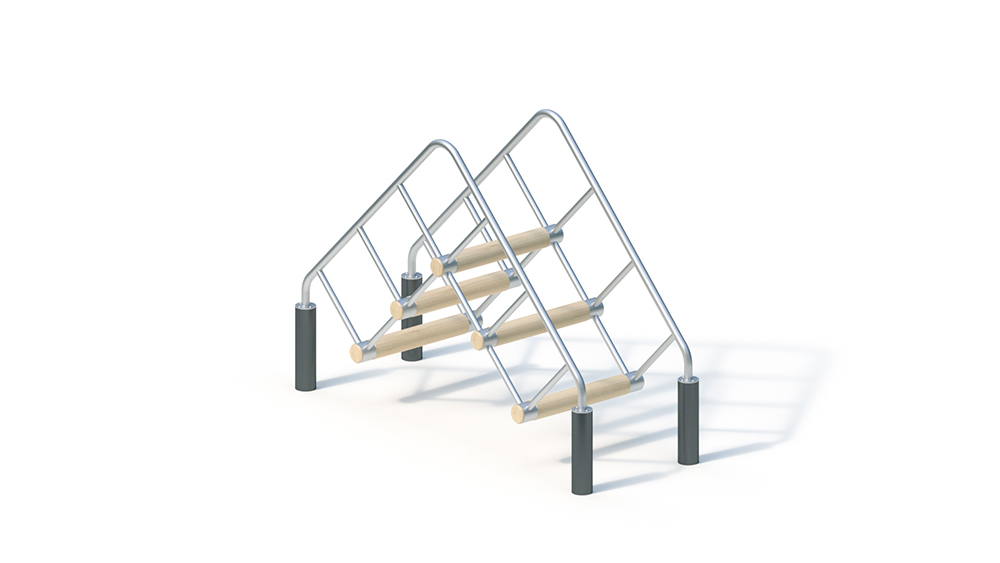

Bar Level trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
2.55 m
Total Width
0.95 m
Total Height
1.80 m
Minimum Space Length
5.55 m
Minimum Space Width
3.95 m
Minimum Space Height
1.80 m
Heaviest Single Piece
95.00 kg
(Total) Weight
160.00 kg
Free Height of Fall
1.15 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Technical Data
Technical data
Floor area: 0.95 x 2.55 m
Minimum space: 3.95 x 5.55 m
Total height: 1.80 m
Weight: 95 kg Heaviest single part
150 kg in total
Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Bar steps
: Robinia Ø 120 mm
Metal
components : Stainless steel station sign (see item no. 0-57411-000) can be supplied at an extra charge become.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Free fall height
1.15 m
