0-58140-000

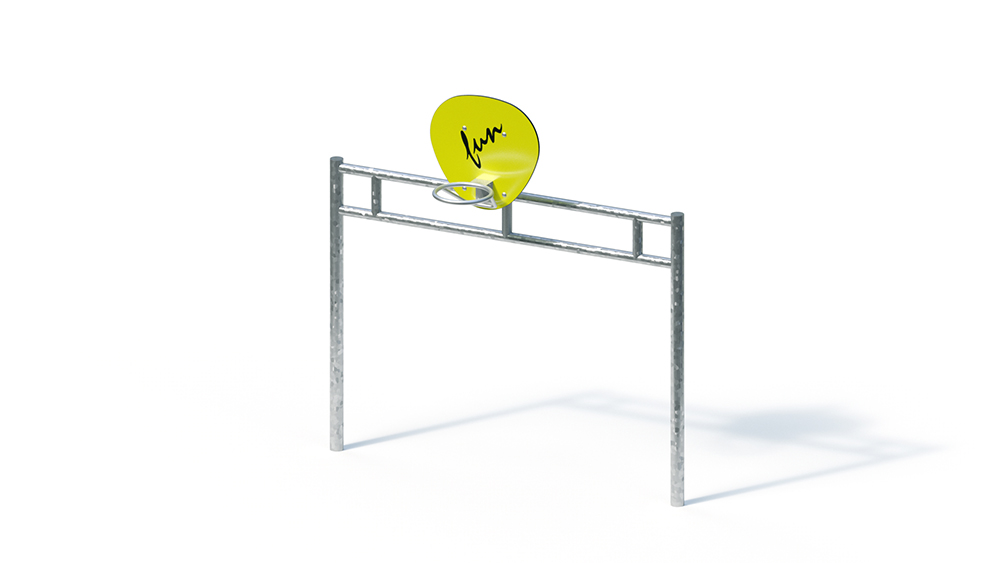

Ball games goal

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Sport Activity

Suitable for

Suitable for
ages 3 and up,
public playgrounds, etc.,
sporting activities.

Techincal Specifications

Lifting Device

-

Total Length

3.15 m

Total Width

1.10 m

Total Height

3.30 m

Minimum Space Length

-

Minimum Space Width

-

Minimum Space Height

-

Heaviest Single Piece

70.00 kg

(Total) Weight

190.00 kg

Free Height of Fall

-

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Base area: 1.10 x 3.15 m
Total height: 3.30 m
Basket height: 2.65 m Gate size
: 3.00 x 2.00 m
Weight: 70 kg, heaviest individual part,
190 kg in total

– Goal frame made of tubular steel, hot-dip galvanized.
– Backboard made of colored, highly weather-resistant HPL laminate board, 20 mm.
– Stainless steel target throwing ring.

Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.60 m
amount of concrete: 0.30 m³
