0-52150-701

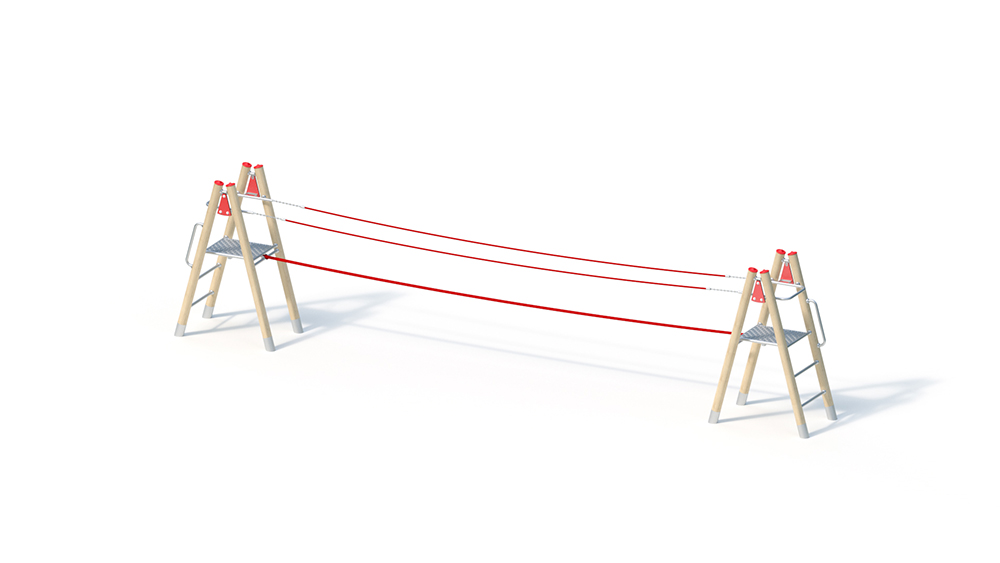

Balancing rope

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Balance

Suitable for

Suitable for
children from 8 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device

-

Total Length

9.10 m

Total Width

0.95 m

Total Height

2.20 m

Minimum Space Length

11.80 m

Minimum Space Width

3.60 m

Minimum Space Height

2.20 m

Heaviest Single Piece

30.00 kg

(Total) Weight

330.00 kg

Free Height of Fall

1.20 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 0.00 x 0.00 x 0.00 m volume: 0.50 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

3h

Technical Data

Technical data
Floor area: 0.95 x 9.10 m
Minimum space: 3.60 x 11.80 m (41 m²)
Total height: 2.20 m
Platform height: 1.20 m
Weight: 30 kg, heaviest individual part
330 kg in total

– Scaffolding beams made of glued Robinia wood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel. Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
– smb-airborne web 3 adjacent to each other running, firmly connected Hercules parts, approximately 90 mm wide
– vertical handle as a climbing aid for stainless steel pipe, Ø 33.7 x 2 mm
– platform made of profiled steel sheet
– tensioning device for airborne web, handrail Hercules rope Ø 22 mm
– Metal components: stainless steel

Foundations (on site)
4 pcs. 0.60 x 1.40 x 0.60 m
Amount of concrete: 2.02 m³

Free fall height
1.20 m
