0-52020-000

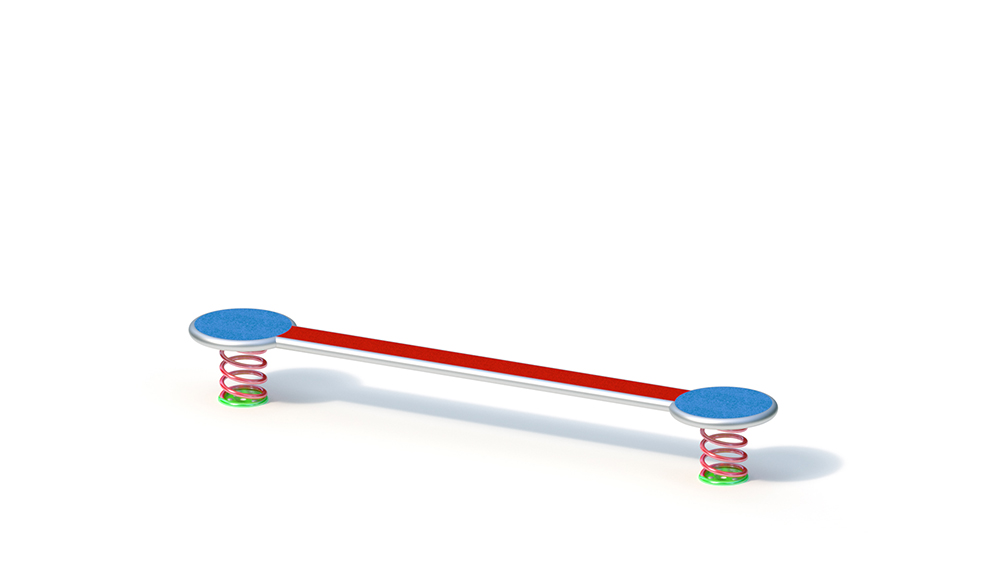

Balancing bridge

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Balance

Suitable for

Suitable for
children from 3 years,
public playgrounds, etc.,
exercise activities

Techincal Specifications

Lifting Device

-

Total Length

2.65 m

Total Width

0.45 m

Total Height

0.35 m

Minimum Space Length

5.65 m

Minimum Space Width

3.45 m

Minimum Space Height

0.35 m

Heaviest Single Piece

-

(Total) Weight

55.00 kg

Free Height of Fall

0.35 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 0.80 x 0.50 x 0.10 m volume: 0.04 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Technical Data

Technical data
Floor area: 2.65 x 0.45 m
Minimum space: 5.65 x 3.45 m (13 m²)
Balancing height: 0.35 m
Balancing frame: stainless steel / balancing surfaces covered with rubber granulate. Granulate color optionally: red, green, blue and yellow
Rocker spring: Special spring wire Ø 20 mm
Weight: 55 kg in total

Including ground anchor

Foundations
With light soil (soil classes 6-9 according to DIN EN 1176, sand, bark mulch, fine gravel), the base plate of the ground anchor must be covered with foundations (2 pieces 0.80 x 0.50 x 0.10 m).
Amount of concrete: 0.08 m³

Free height of fall
0.35 m.
Installation in areas without shock-absorbing properties (such as in pedestrian zones) is permitted.

Foundation anchors (item no. 1090219) are available for an extra charge for easy installation in synthetic fall protection at the same height. Even with only temporary dismantling, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
