Balance trainer on springs
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Balance
Suitable for
Suitable for
children from 3 years,
public playgrounds etc.,
exercise activities
Techincal Specifications
Lifting Device
-
Total Length
3.20 m
Total Width
0.25 m
Total Height
0.35 m
Minimum Space Length
6.20 m
Minimum Space Width
3.25 m
Minimum Space Height
0.35 m
Heaviest Single Piece
-
(Total) Weight
55.00 kg
Free Height of Fall
0.35 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.80 x 0.50 x 0.10 m volume: 0.04 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Technical Data
Technical data
Base area: 3.20 x 0.25 m
Minimum space: 6.20 x 3.25 m
Balance height: 0.35 m

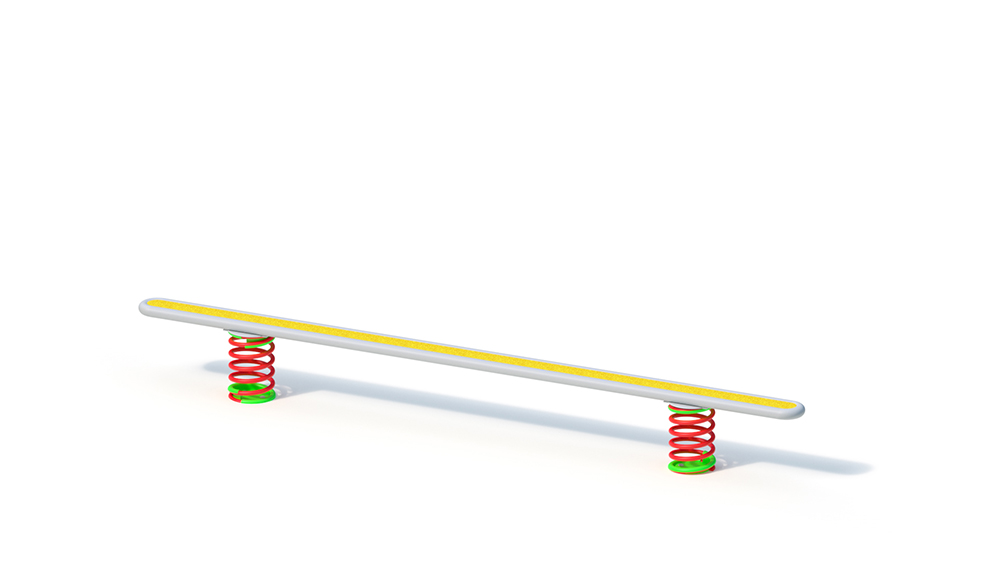

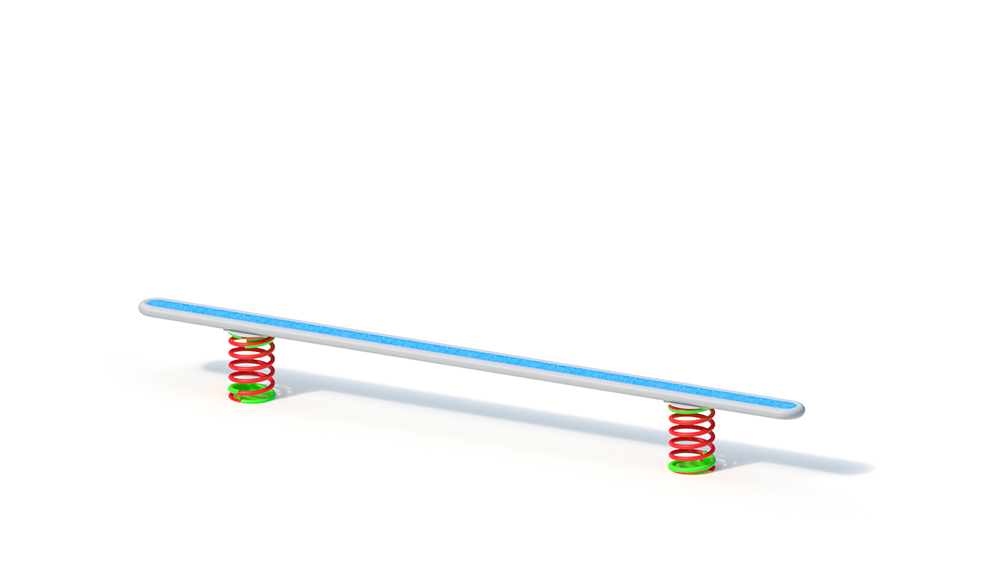

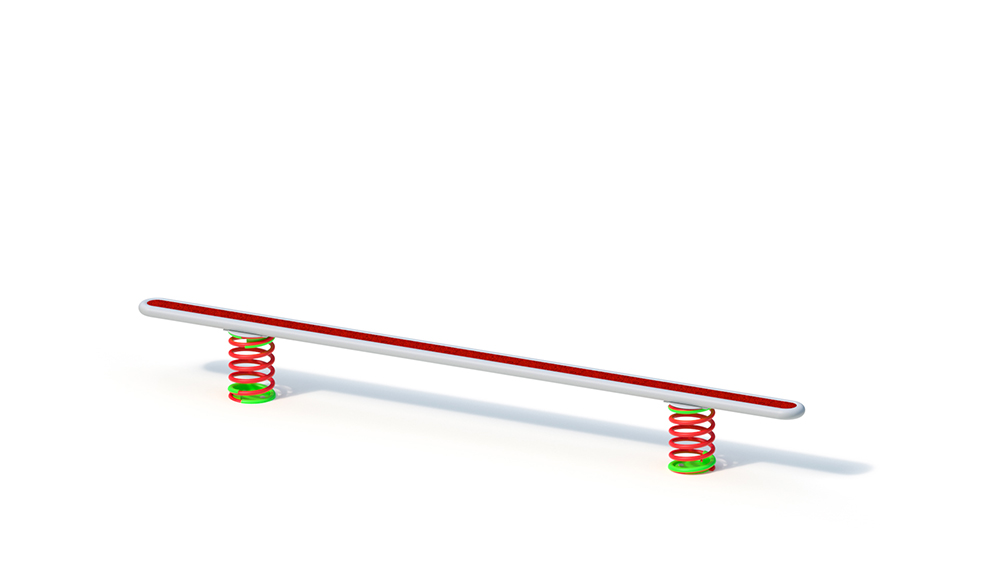

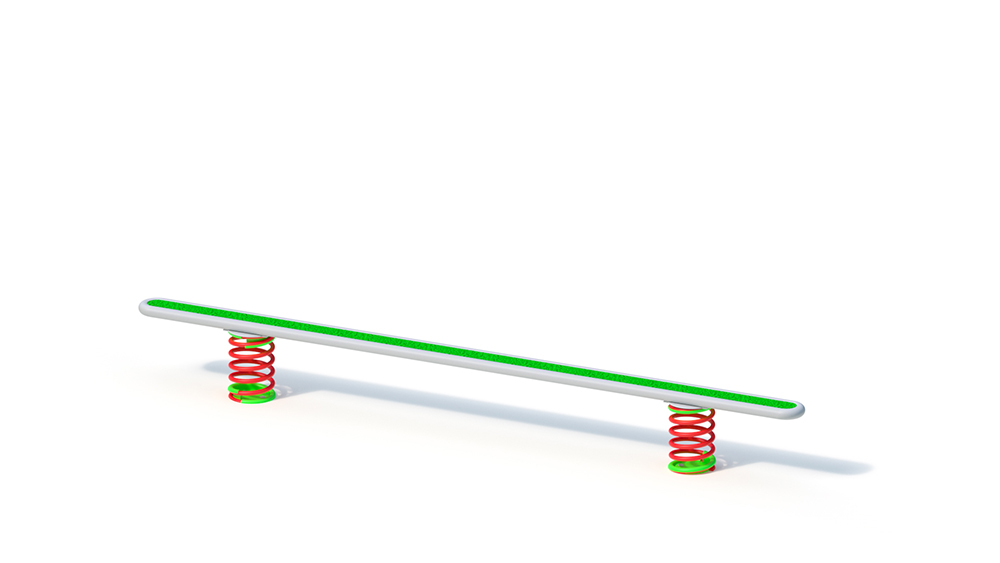

Balance frame: stainless steel / balance area covered with rubber granulate. Granulate color optionally: red, green, blue and yellow
Rocker spring: Special spring wire Ø 20 mm
Weight: 55 kg in total
Including ground anchor
Foundations
With light soil (soil classes 6-9 according to DIN EN 1176, sand, bark mulch, fine gravel), the base plate of the ground anchor must be covered with foundations (2 pieces 0.80 x 0.50 x 0.10 m).
Free height of fall
0.35 m.
Installation in areas without shock-absorbing properties (such as in pedestrian zones) is permitted.
Foundation anchors (item no. 1090219) are available for an extra charge for easy installation in synthetic fall protection at the same height. Even with only temporary dismantling, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
